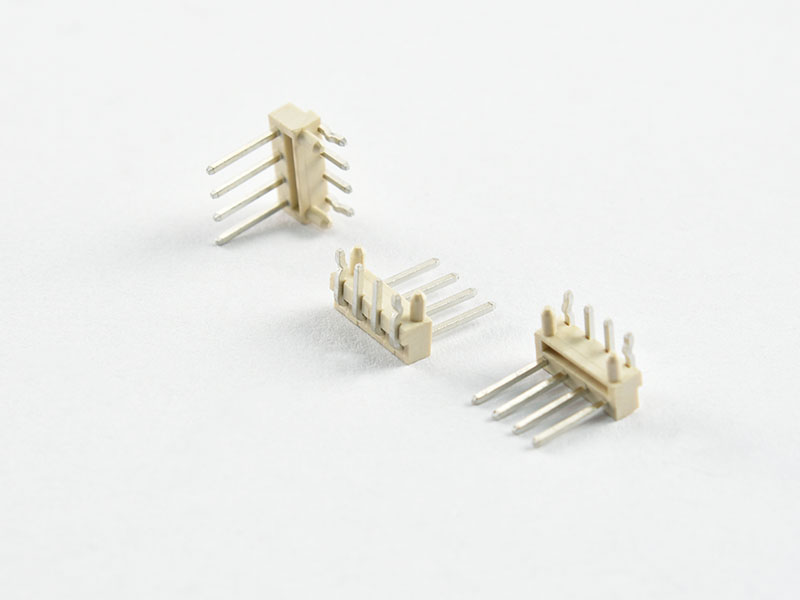

Board to Board Link,for LED Bulb,Pitch 2.5mm

  • Model: KLS2-L42A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

MATERIAL
Insulator:LCP,UL94V-0,Beige
Contacts:Brass,Tin-plated

Main Specifications
Poles:02-06P
Contact Resistance:≤20mΩ
Insulation Resistance:≥1000MΩ
Rated Voltage:125V AC DC
Rated Current:1.0A AC DC
Withstanding Voltage:1000V AC/minute
Temperature Range: -40 ° C ~ + 120° C
