Adapter Type |
Plug to Jack |
Adapter Series |

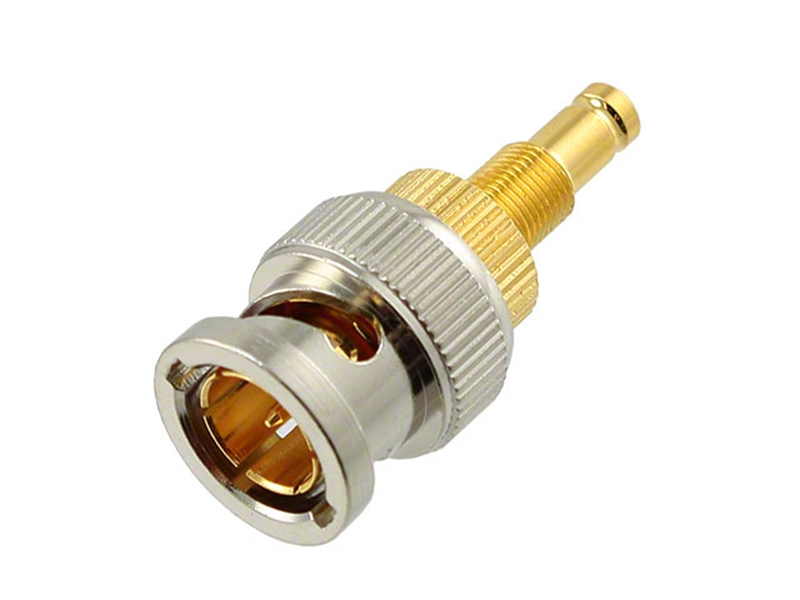

BNC to 1.0/2.3 |
Center Gender |
Female to Male |
Convert From (Adapter End) |
BNC Plug, Male Pin |
Convert To (Adapter End) |
1.0/2.3 Jack, Female Socket |
Conversion Type |
Between Series |
Impedance |
75 Ohm |
Style |
Straight |
Mounting Type |
Free Hanging (In-Line) |
Frequency – Max |
2GHz |
Ingress Protection |
– |
Features |
– |
Body Material |
Brass |
Body Finish |
Gold |
Dielectric Material |
Polytetrafluoroethylene (PTFE) |
Center Contact Material |
Beryllium Copper |
Center Contact Plating |
Gold |
|
