1- Electrical
Impedance: 50 Ω
Frequency Range:0~4 GHz Max.
Voltage Rating: 500 volts
Withstand Voltage:1500V
Insulation Resistance:5000 MΩ
V.S.W.R:＜1.22
Contact resistance:
Centre contact: 1.5 mΩ Max.
Outer contact: 0.2 mΩ Max.

2- Durability(mating):500(cycles)

3- Mechanical
Mating 2-stud bayonet lock

Cable Type: RG174, RG178,RG316,LMR100

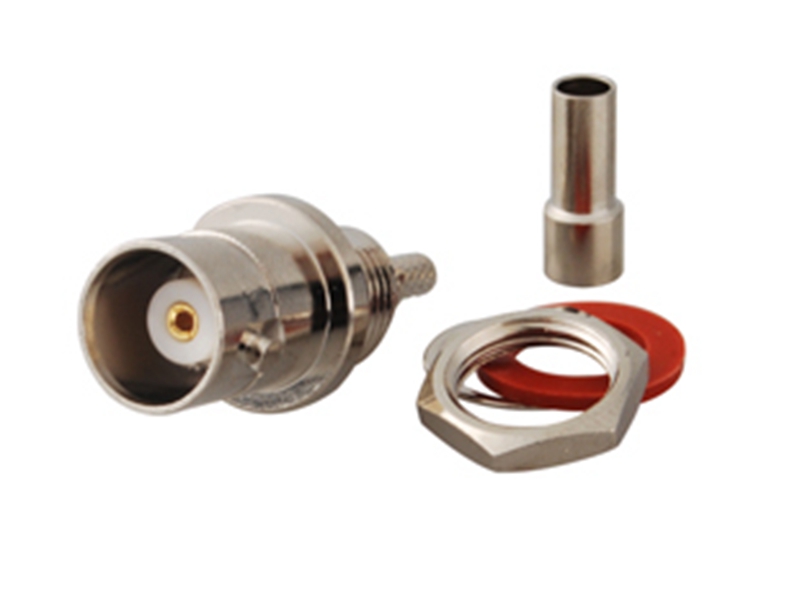

KLS1-BNC160: Impedance: 50Ω

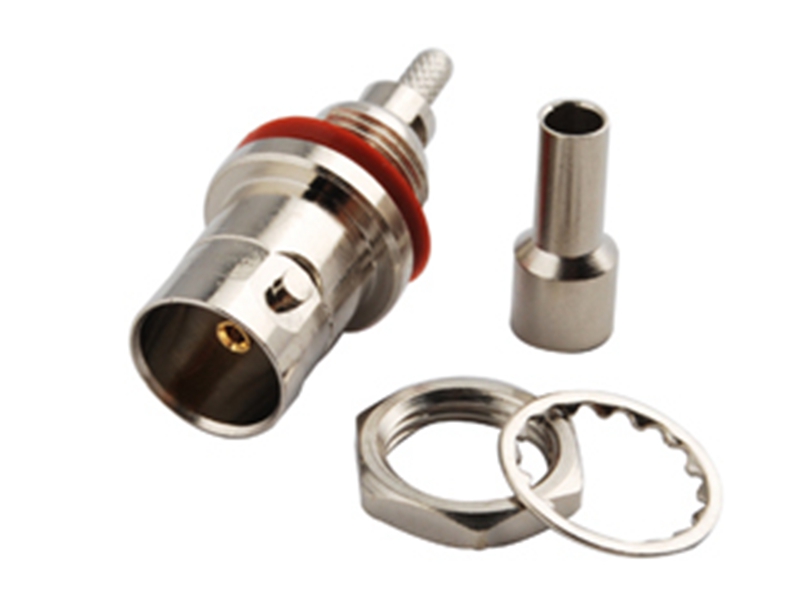

KLS1-BNC160B: Impedance: 75Ω
