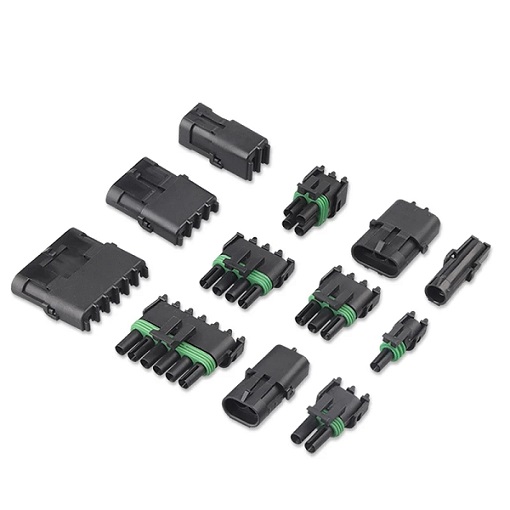

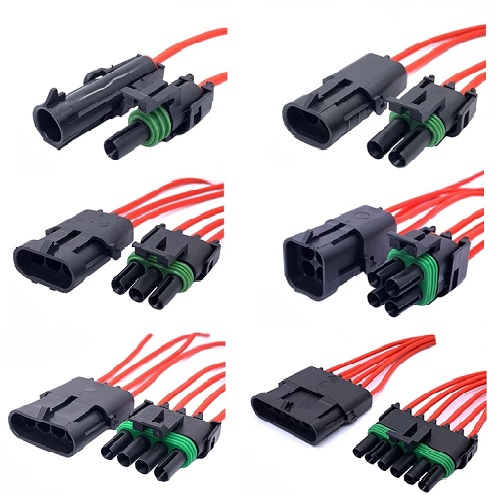

APTIV Delphi Weather-Pack Automotive Connector 2.5 Series 1,2, 3, 4, 6position
Ideal for harsh environment conditions, connectors are sealed against moisture,dust and dirt
Female connector body comes with a silicone seal to help ease the connection
Nylon housings are rated: -40C to +125C degrees
Available in 1 through 6 contact configuration, and in a 22 lead bulk head configuration
Terminals are rated: 20 amps at 12V DC
Weather-Pack Female Connector:

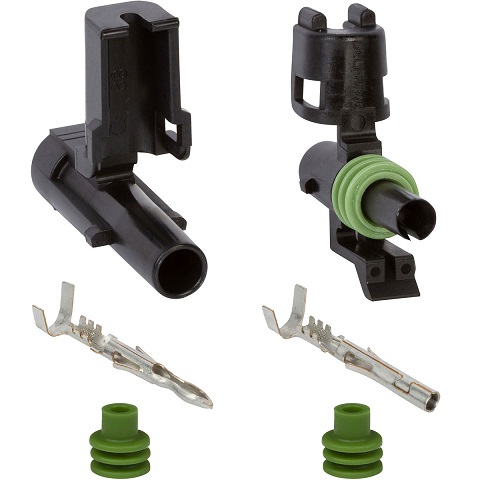

1P: 12015791

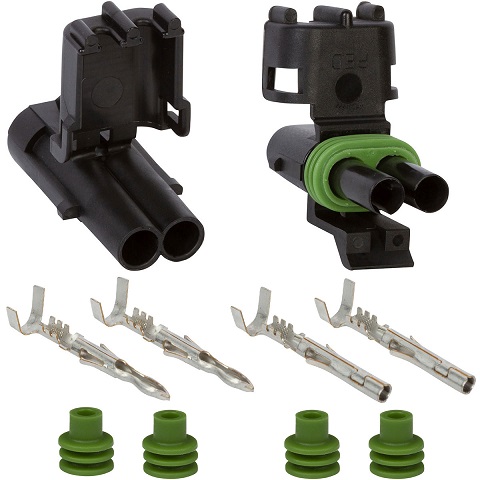

2P: 12015792
3P: 12020829
4P: 12015798
4P: 12020832
6P: 12020926
Weather-Pack Male Connector:
1P: 12010996
2P: 12010973
3P: 12020827
4P: 12015024
4P: 12020830
6P: 12020786
