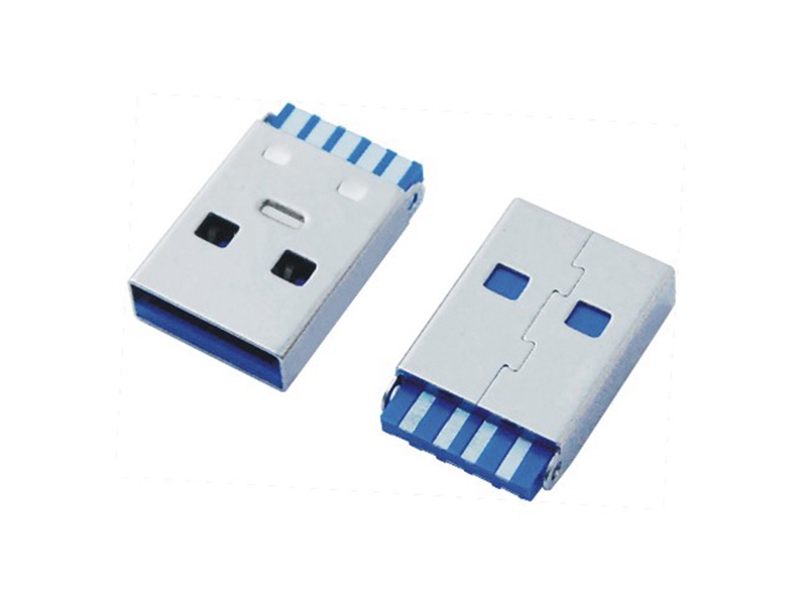

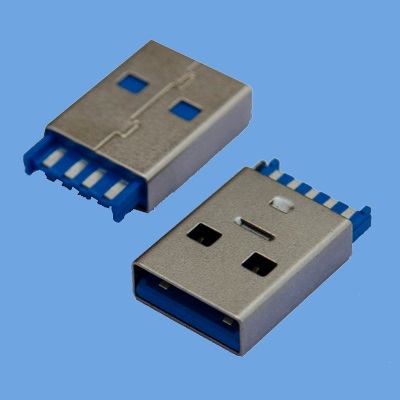

A Male Solder USB 3.0 connector

  • Model: KLS1-312
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material
Insulator: PBT,UL94V-0
Contact: Copper Alloy T=0.2mm,Gold plated
Shell: Spcc,T=0.30MM,Nickel(Ni) plated

Electrical
Contact Current Rating:1.5 A For Pin1&Pin4
0.25 A Other Contacts.
Withstanding Voltage:500VAC(R.M.S.)
Contact Resistance: 30mΩ Max
Insulation Resistance:1000MΩ Min

Mechanical
Operating Temperature:-40°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
