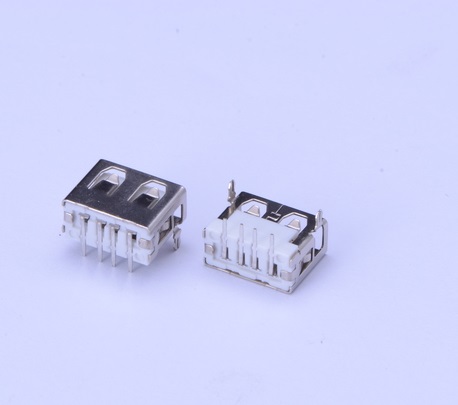

A Female Dip 90 USB Connector L10.0mm

Model: KLS1-1804
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Material
Housing:Hing Temperature Thermoplastic,
UL94V-0 PBT,Black/White.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;
Tin On Solder Tails.
Shell:Nickel Plating.

Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:
500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.75kgf Max.
Unmated Force:1.02kgf Min.
Terminal Retenion:1.2kgf Min.
