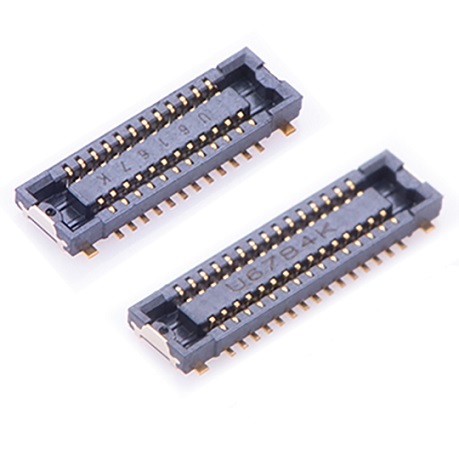

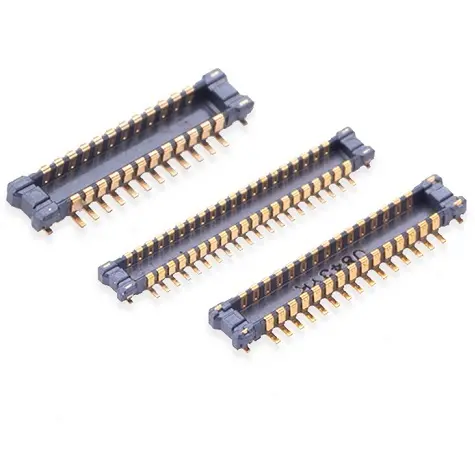

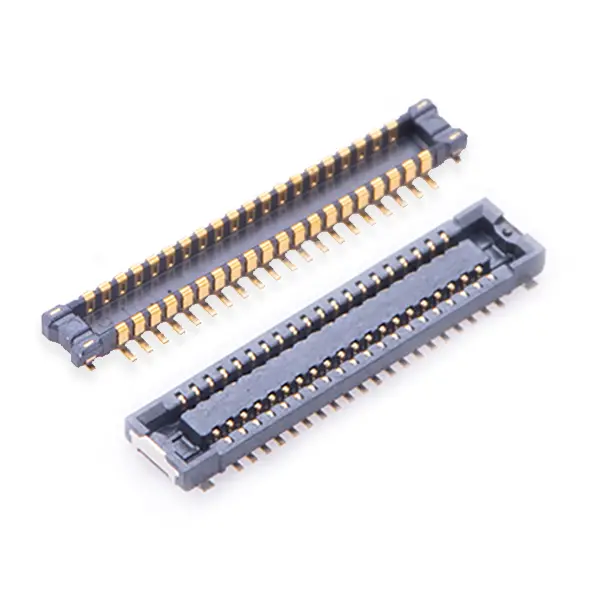

0.40mm Pitch Board to Board Connector,Matting Height 0.80mm

Male:B0204-065M Female:B0204-076F
Material and Plated
1.Housing:High Temp Plastic,(LCP UL94V-0) Black
2.Contact:Copper Alloy
3.Plated:Gold Plated (Nickel 50u” Min. Over all)

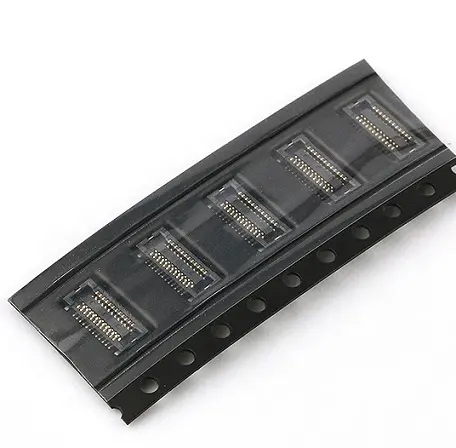

4.Package :5000pcs/Reel

Specifications:
1.Current Rating:0.3A AC/DC
2.Voltage Rating:30V AC/DC
3.Contact Resistance:100mΩ. max.
4.Insulation Resistance:50MΩ. min.
5.Withstanding Voltage:100V AC for oneminute
6.Operating Temperature Range:-35℃~+85℃

KLS1-B0204.pdf
