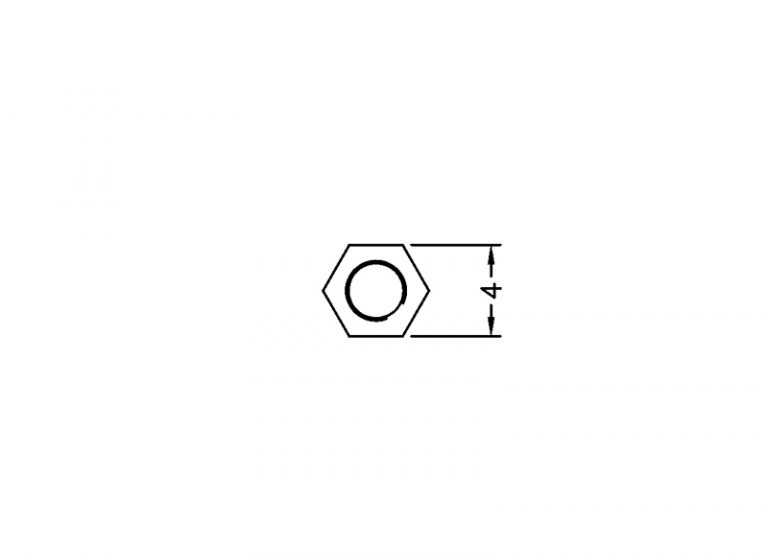

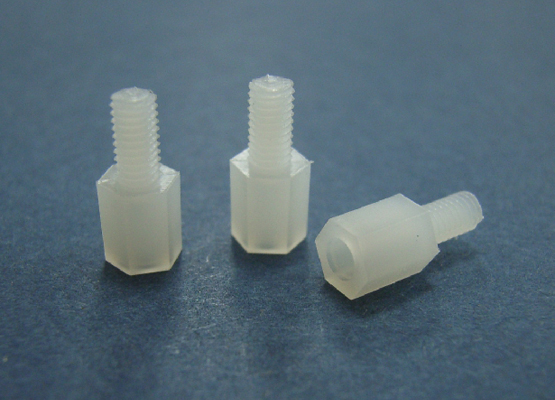

M2.5 Hexagonal Spacer

  • Model: KLS8-0214-M2.5
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

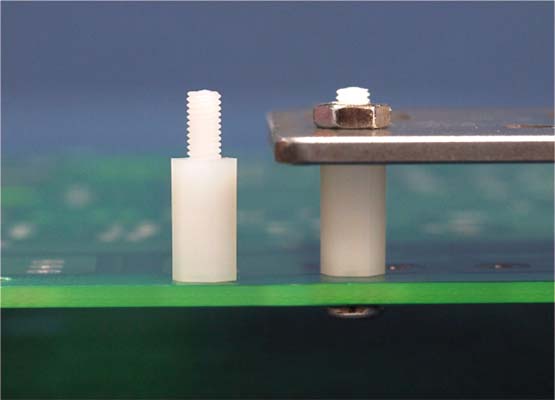

Application: the fixed PC board on the boards, free tools

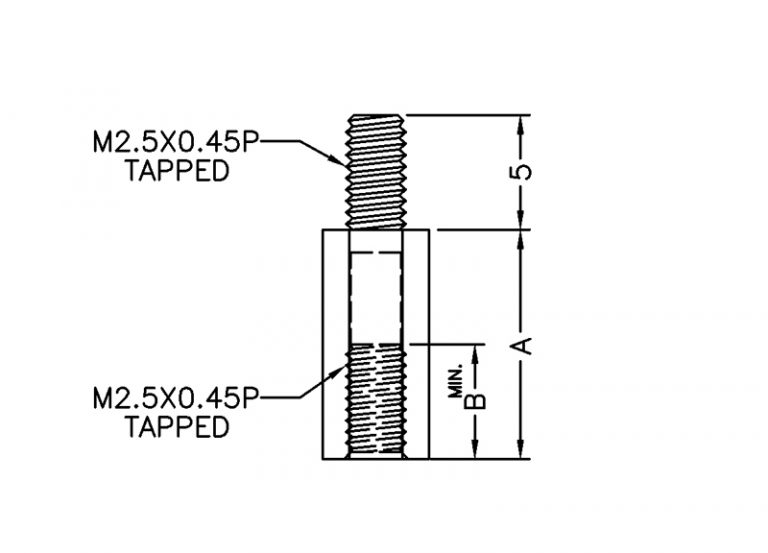

P/N A UPPER  CHASSIS  Color Packing
THERD THERD
　 mm mm mm 　 pcs
L-KLS8-0214-M2.5-05 5.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-06 6.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-07 7.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-08 8.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-09 9.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-10 10.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-11 11.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-12 12.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-13 13.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-14 14.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-15 15.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-16 16.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-17 17.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-18 18.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-19 19.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-20 20.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-21 21.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-22 22.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-23 23.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-24 24.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-25 25.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-26 26.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-27 27.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0214-M2.5-28 28.0 M2.5×0.45 M2.5×0.45 Natural 1000
