KLS7-SMS-102-C4         ON-ON                 3P
KLS7-SMS-103-C4         ON-OFF-ON         3P

KLS7-SMS-202-C4         ON-ON                 6P
KLS7-SMS-203-C4         ON-OFF-ON         6P

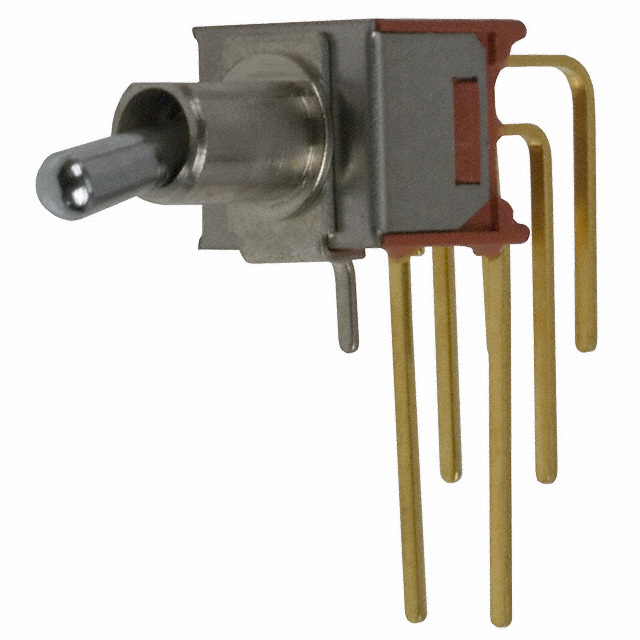

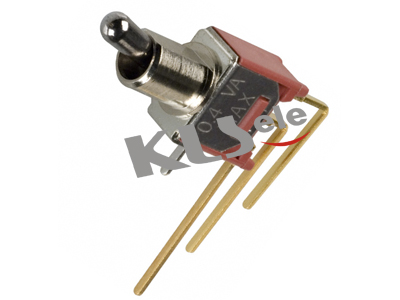

Sub-miniature Toggle switch (Vertical Right Angle)
SPECIFICATIONS
Rating: 3A 125VAC; 1.5A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1000V AC 1 Minute
Operating Temperature:-25ºC +65ºC
Electrical Life :20,000 cycles
