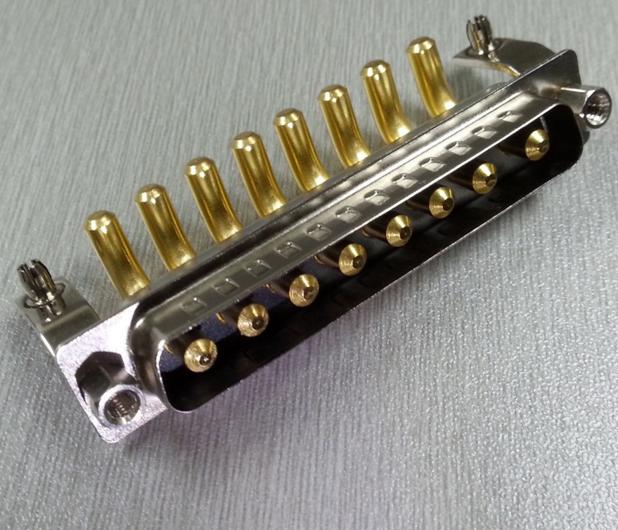

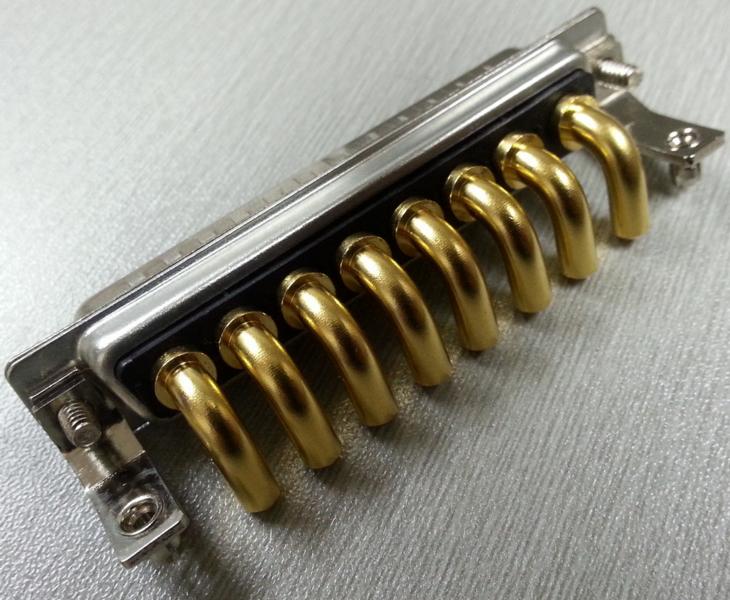

8W8 High current D-SUB PCB Female & Male

  • Model: KLS1-BIG06C-8W8
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

8W8 High current D-SUB PCB Female & Male

Order Information
KLS1-BIG06C-8W8-M-40A-1U
BIG06C-PCB type
8W8-No.of pin
M-Male F-Female
40A-Current Rating 40A & 10A 20A 30A
1U-Contact plating Gold 1u” & 3U-3u”

Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Copper alloy
Contact plating: Gold 1u” or 3u”
Shell: Steel, 100u” Tin Over 50u” min Nickel
Clinch Nut: Brass, 100u” min Nickel Plated

Electrical Characteristics:
Voltage Rating: 300V
Current Rating: 10A 20A 30A 40A
Insulator Resistance: 2000M ohms min
Contact Resistance: 10m ohms max
Durability: 500 cycles
Operating Temperature: -55ºC~+105ºC
