- Product Details

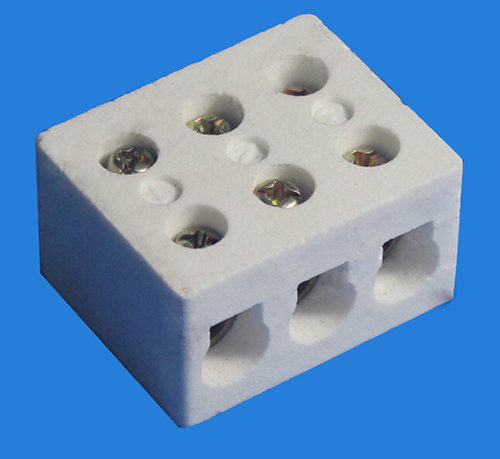

Ceramic terminal blocks
Electrical :
Rated voltage: 110V~750V
Rated current: 5A,10A,20A,25A~50A
Wire range: 1.0~16.0 mm2
Material:
Pin header: Brass
Housing: Ceramic
Mechanical:
Temp. Range: -40ºC~+250ºC

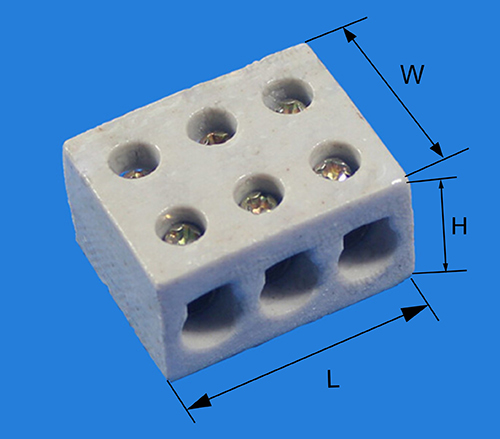

| Model | Texture of material | Length | Width | Height | Rated Current |
| CTB6-T-1 | Talc porcelain | 30 | 22 | 16 | 5A |
| CTB6-T-2 | Talc porcelain | 38 | 30 | 21 | 10A |
| CTB6-H-1 | High frequency porcelain | 37.5 | 30.5 | 21 | 20A |
