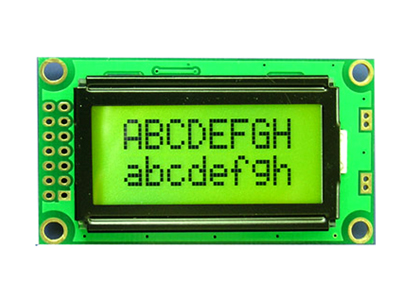

Display: 8×2 Character Type
OUTLINE: 58.0×32.0x14
V.A.: 38.0×16.0
Character Size:2.96×5.56
Dot: 0.56×0.66
View angle:12  O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/ Yellow-Green
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: Yellow-Green LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-20ºC～+70ºC

KLS9-0802C.pdf
