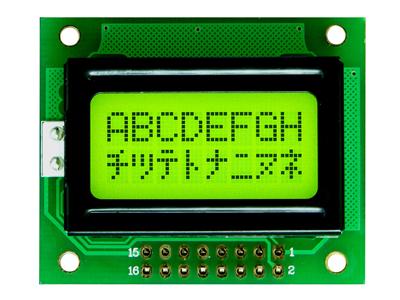

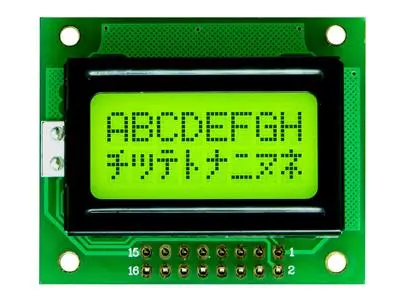

8*2 Character Type LCD Module

Model: KLS9-0802BY
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Display: 8×2 Character Type
OUTLINE: 44.0x36x13
V.A.: 30.0×14.0
Character Size:2.78×4.49
Dot: 0.57×0.57
View angle:6 O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/ Yellow-Green
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: Yellow-Green LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC～+60ºC

PDF

KLS9-0802BY.pdf
