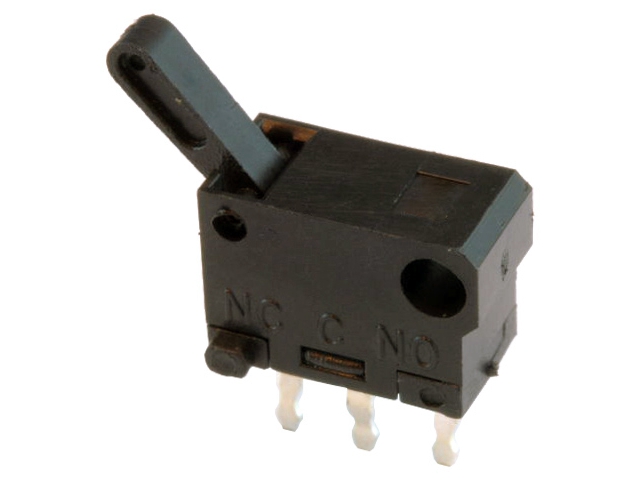

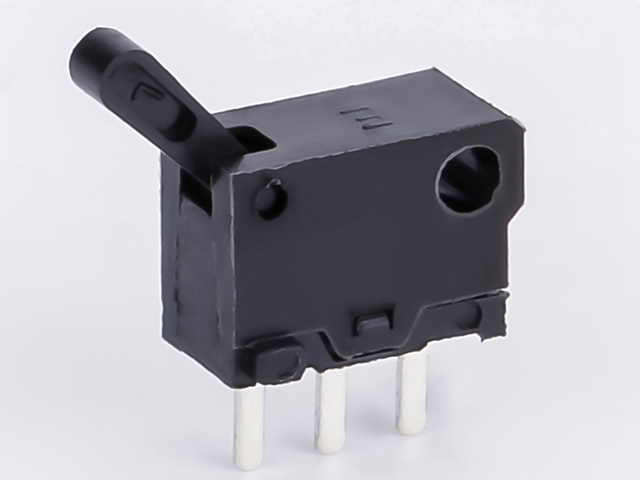

8.5×4.0x6.0mm Detector Switch SPST-NO DIP

  • Model: KLS7-ID-1124
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Detector Switch
SPECIFICATION:
Rating: 0.1A 30V DC
Operating Force: 45gf
Electrical Strength: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance : 30 mΩ max
Operating Force : 80±50 gf Max
Operating Temperature: -10oC ~ +70oC
Mechanical Life: 50,000 cycles
Electrical Life: 10,000 cycles
