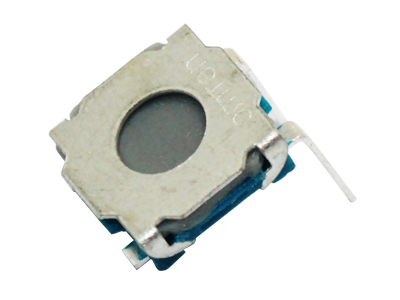

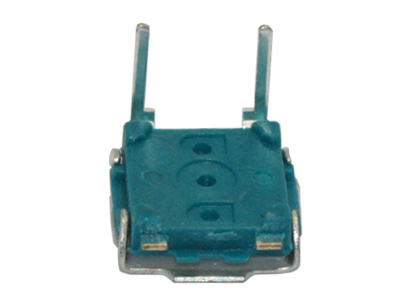

7×7 mm Touch waterproof switch
- Product Details
Electrical:
1.Rating: 50mA 12V DC
2.Travel:0.35±0.1mm
3.Contact Resistance :50mΩ Max
4.Electrically Life:100000 cycles Min.
5.Operating Force:150±50gf
6.Environment temperature:-30ºC~+80ºC
Materials:
1.Terminal:Brass, silver-plated
2.Foundation:PPA,Blue
3.Shrapnel:Silver – Copper
4.Waterproof Layer:Silica Gel
5.Cover: brass, chrome matt
