Order Information
KLS1- GPS-06B – B 200

GPS: Antenna Frequency 1568±1MHz
Color Code: B: Black G:Gray
200: Cable Lenges

Specification:

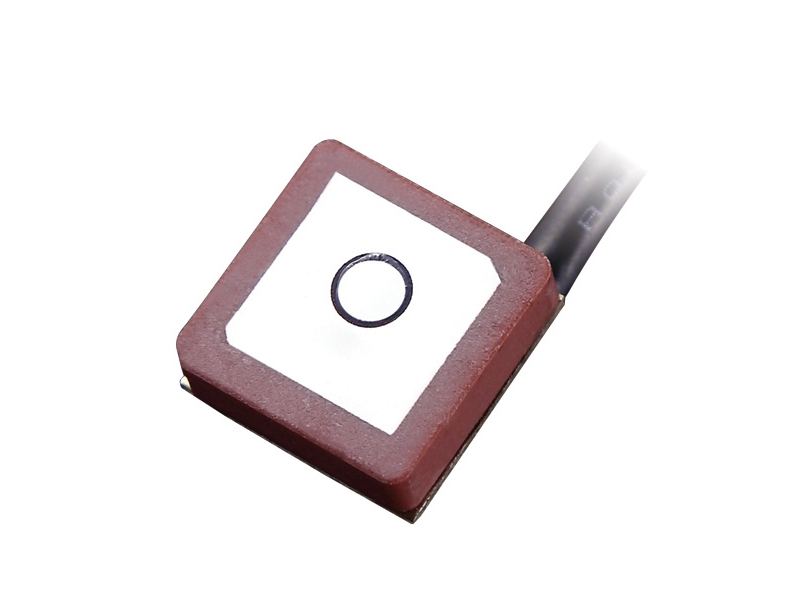

Antenna
Center Frequency:1575.42±1MHz
Band Width:CF±5MHz
Polarization:RHCP
Gain:5dBic（Zenith）
V.S.W.R:＜1.5
Impendance:50Ω
Dimension:13*13*3.5mm

LAN
Gain:28±2dB
Noise Figure:＜2
Ex-band Attenuation:30dB@CF±40MHz
Supply Voltage:3.3V DC
Current Consumption: 9mA
V.S.W.R:＜2.0
Cable:RF 1.13
Connector:I-PEX
Environmental:Operating Temperature :-40℃~+85℃

KLS1-GPS-06C.pdf
