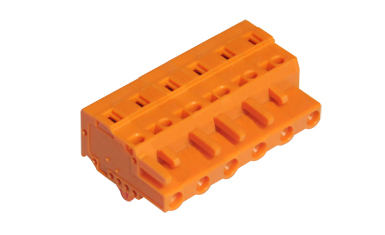

7.62mm Female MCS connectors

Number of plies Single deck Port number 2~24 Pitch 7.62mm Color Orange Connection technology Spring cage clamp connection technology Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc Strip length 8~9mm Insulation material PA66 Flammability rating conform to UL94 V0 Rated voltage V 400V Rated current A 16A Wire range mm² 0.2~2.5mm UL Rated voltage V 300V UL Rated current A 15A UL Wire ...
  • Product Details

Number of plies Single deck
Port number 2~24
Pitch 7.62mm
Color Orange
Connection technology Spring cage clamp connection technology
Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc
Strip length 8~9mm
Insulation material PA66
Flammability rating conform to UL94 V0
Rated voltage V 400V
Rated current A 16A
Wire range mm² 0.2~2.5mm
UL Rated voltage V 300V
UL Rated current A 15A
UL Wire range AWG 24~14
