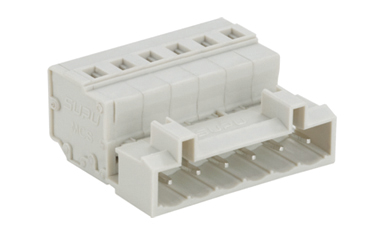

7.50mm Male connectors (fail-safe)

  • Model: KLS2-MPKSC-7.50
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Number of plies Single deck
Port number 2~24
Pitch 7.5mm
Color Light gray
Connection technology Spring cage clamp connection technology
Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc
Strip length 8~9mm
Insulation material PA66
Flammability rating conform to UL94 V0
Rated voltage V 400V
Rated current A 12A
Wire range mm² 0.2~2.5mm²
UL Rated voltage V 300V
UL Rated current A 15A
UL Wire range AWG 24~14
