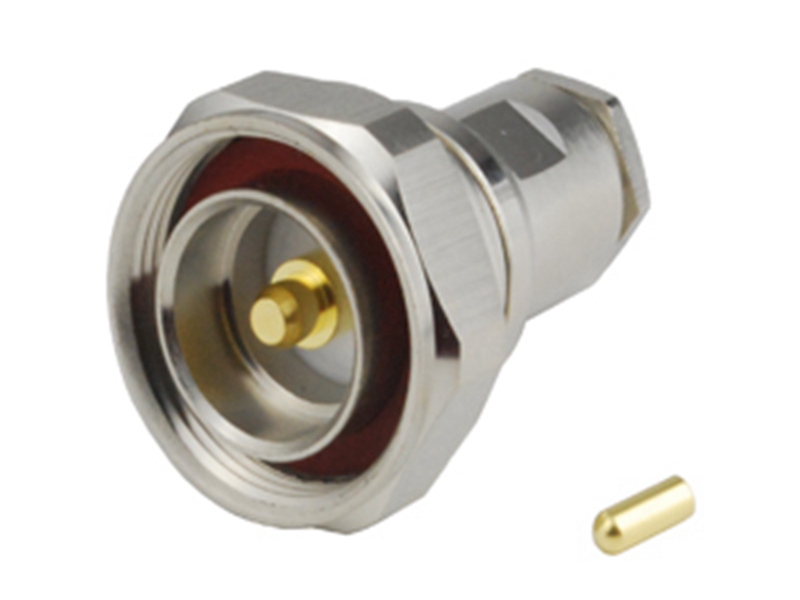

1- Center Contact: Brass,Silver-plated
2- Body-diecast: Brass,Nickel-plated
3- Insulation: PTFE
4- Crimping suite: copper alloy, nicked or Gold-plated
5- Electrical
Impedance: 50 Ω
Frequency Range:6 GHz Max.
Insertion loss:≤0.35dB,DC-6GHz
Insulation resistance:≥1000mΩ
Voltage Rating: 2700 volts
Withstand Voltage:4000V
V.S.W.R:＜1.3
Insulation resistance: 5000 MΩ Min.
Contact resistance:
Centre contact:0.4 mΩ
Outer conductor:1.5 mΩ
6-Mechanical
Mating: M29x1.5 threaded coupling
7-Durability(mating): 500 cycles Max.
8-Temp.range -40°C~85°C

Cable Type: RG8,RG213,LMR400
