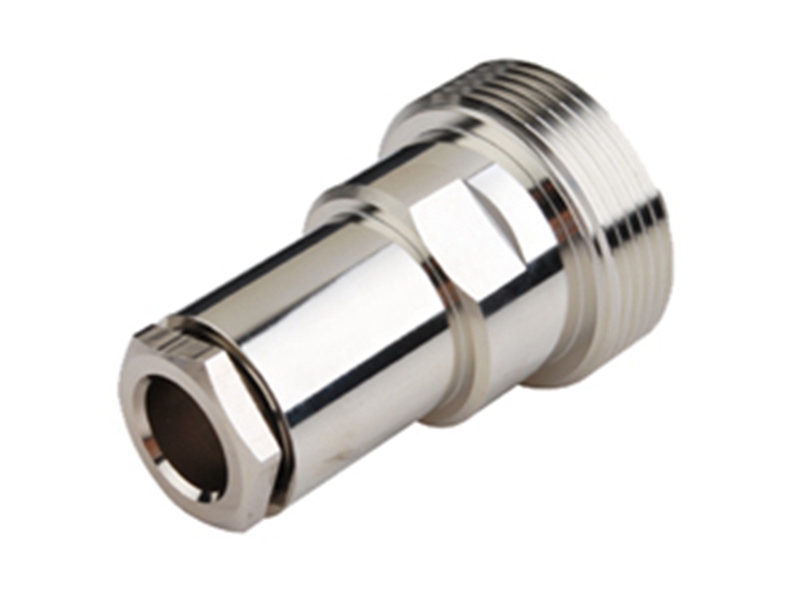

7/16 connector for RG8

  • Model: KLS1-L29003
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

1- Center Contact: Brass,Silver-plated
2- Body-diecast: Brass,Nickel-plated
3- Insulation: PTFE
4- Crimping suite: copper alloy, nicked or Gold-plated
5- Electrical
Impedance: 50 Ω
Frequency Range:6 GHz Max.
Insertion loss:≤0.35dB,DC-6GHz
Insulation resistance:≥1000mΩ
Voltage Rating: 2700 volts
Withstand Voltage:4000V
V.S.W.R:<1.3
Insulation resistance: 5000 MΩ Min.
Contact resistance:
Centre contact:0.4 mΩ
Outer conductor:1.5 mΩ
6-Mechanical
Mating: M29x1.5 threaded coupling
7-Durability(mating): 500 cycles Max.
8-Temp.range -40°C~85°C

Cable Type: RG8,RG213,,LMR400
