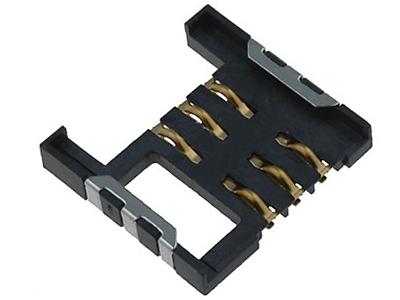

6P SIM Card Connector,PUSH PULL,H2.2mm H2.7mm H2.9mm
- Product Details

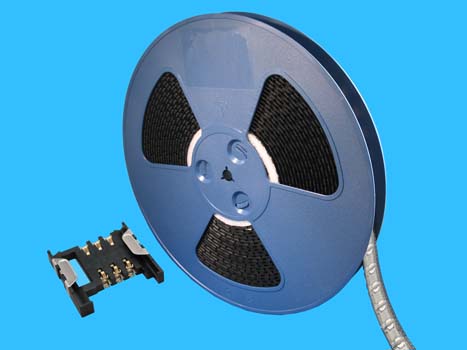

6P SIM Card Connector,PUSH PULL,Roll pack,H2.0mm,H2.2mm,H2.7mm,H2.9mm
Order Information:
KLS1-SIM-015-6P-H2.7
Pins:6pins
Height:H2.2mm,H2.7mm,H2.9mm
Material:
Housing:Hi-Temp.Plastic,UL94V-0.Black.
Terminal:Copper Alloy,(T=0.15mm),Gold Plated Over Nickel.
Fork:Copper Alloy,(T=0.20mm),Tin Plated Over Nickel.
Electrical:
Current Rating:1.0 A max.
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500V AC RMS For One Minute.
Insulation Resistance:1000MΩ Min.At 500V DC
Operating Temperature:-40%%DC TO +85%%DC.
Operating Temperature: -45ºC~+105ºC
