6P SIM Card Connector,PUSH PULL,H1.8mm

Name: Ningbo KLS Electronic Co.Ltd
Address: NO. 8-1, Rongxia RD. Xiapu Shanqian Industrial Zone, Beilun, Ningbo, Zhejiang, China 315800
Tel: +86 57486828566
Fax: +86 57486824882
General Manager: +86 15888521511
Vice General Manager: +86 13777953832
Sales Manager: +86 15088487690
E-mail: <a href="/cdn-cgi/l/email-protection#5a293b363f291a313629393534343f392e352874393537"><span class="__cf_email__" data-cfemail="3b485a575e487b505748585455555e584f544915585456">[email&#160;protected]

Inquiry

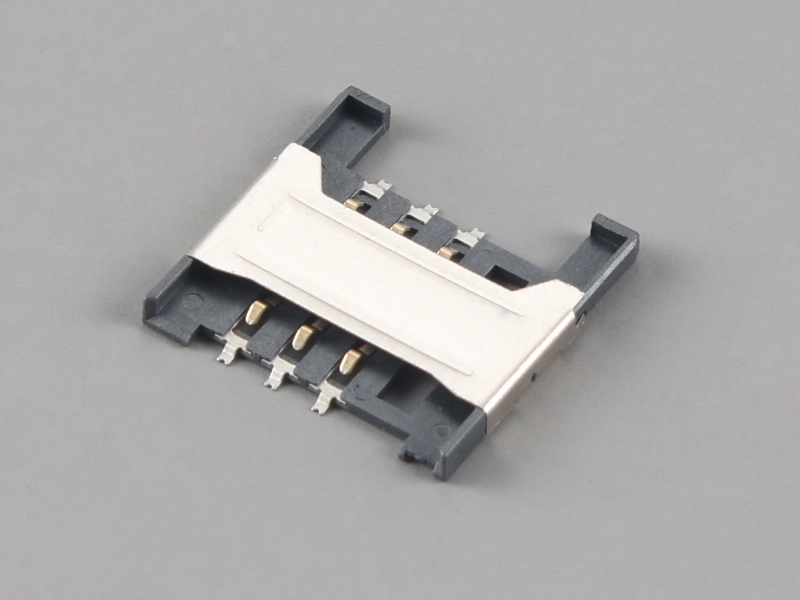

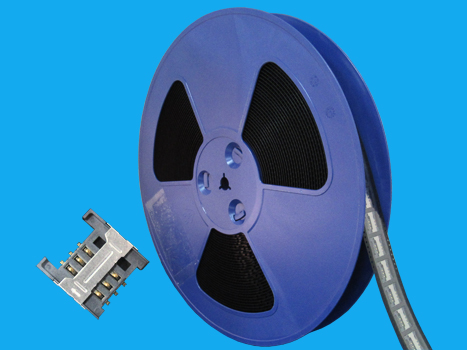

6P SIM Card Connector,PUSH PULL,H1.8mm,Roll pack

Order Information:
KLS1-SIM-044C-6P-R

Material:
Housing:High Thermoplastic,UL94V-0.Black.
Terminal:Copper Alloy.
Shell:Copper Alloy.

Finish:
Contact:Gold Over Nickel.
Shell:Nickel Over All Over.

Electrical:
Operating Voltage:30V
Current Rating:0.5 A
Operating Temperature: -45ºC~+105ºC

PDF
