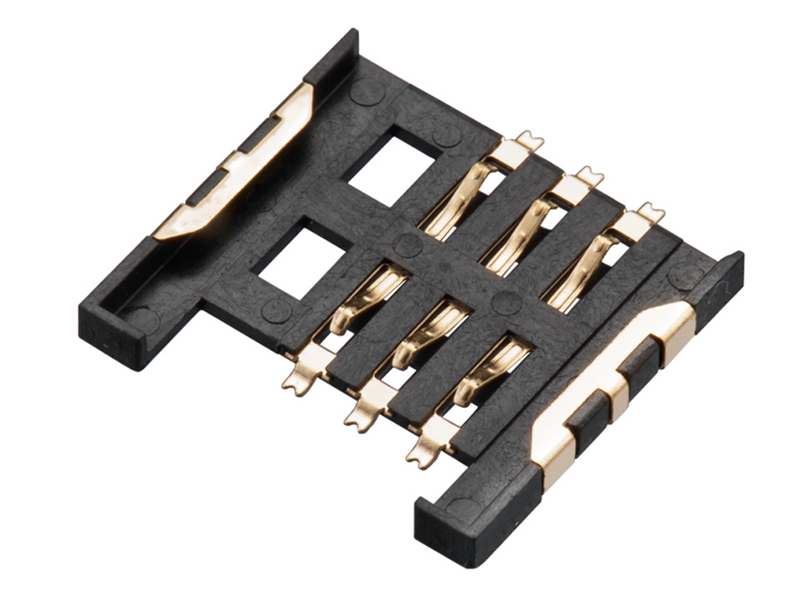

6P SIM Card Connector,PUSH PULL,H1.7mm

Order Information:
KLS1-SIM-015B-H1.7-R
Pins:6pins
Height:H1.7mm

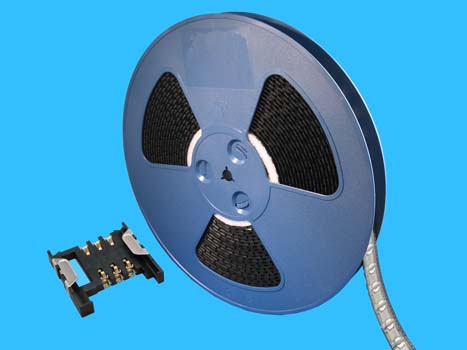

R=Roll pack

Material:

Housing:Hi-Temp.Plastic,UL94V-0.Black.
Terminal:Copper Alloy,(T=0.15mm),Gold Plated Over Nickel.
Fork:Copper Alloy,(T=0.20mm),Tin Plated Over Nickel.

Electrical:

Current Rating:1.0 A max.
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500V AC RMS For One Minute.
Insulation Resistance:1000MΩ Min.At 500V DC

Operating Temperature:-40%%DC TO +85%%DC.
Operating Temperature: -45ºC~+105ºC

KLS1-SIM-015B.pdf
