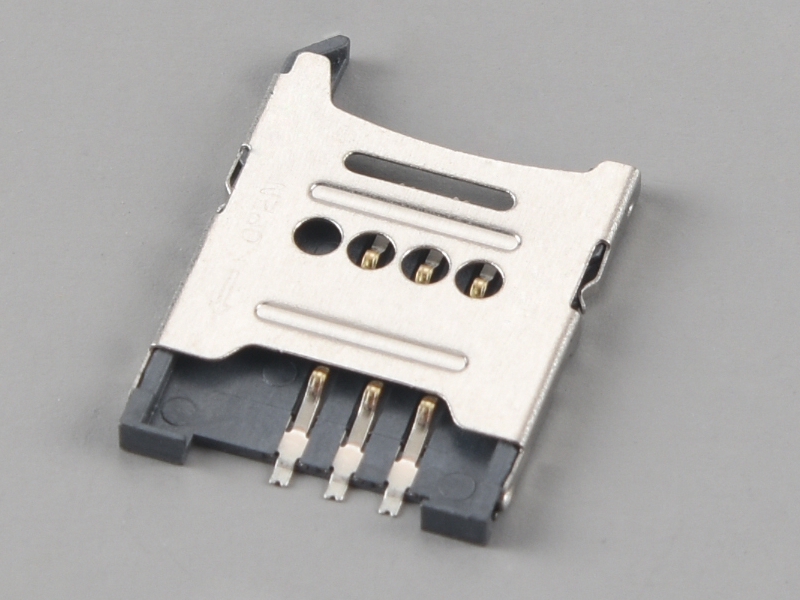

6P SIM Card Connector Hinged type,H1.8mm

Inquiry

Order Information:
KLS1-SIM-018A-6P-H1.8-R
Pins:6pins
H1.8=Height 1.8mm

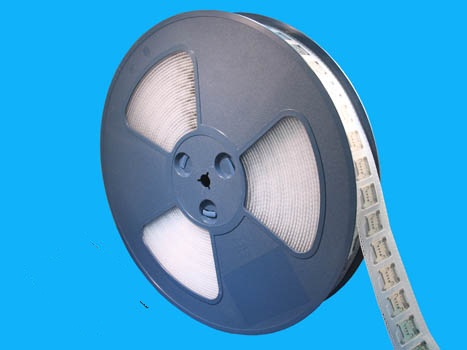

R=Roll pack

NOTES:

1.0 RATING.

1.1 VOLTAGE:12 VAC (rms)

1.2 CURRENT: 1 AMPERES MAX. PER CONTACT

ELECTRIC CHARACTERISTICS:

2.1 CONTACT RESISTANCE:60mΩ

2.2 INSULATION RESISTANCE: 1000MΩ

2.3 DIELECTRIC WITHSTANDING

VOLTAGE:500V AC FOR 1 MINUTE

3.0 OPERATION LIFE: 5000 CYCLES

4.0 Operating Temperature: -45ºC~+105ºC
