6P & 8P SIM Card Connector Hinged type,H2.5mm

  • Model: KLS1-SIM-012
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

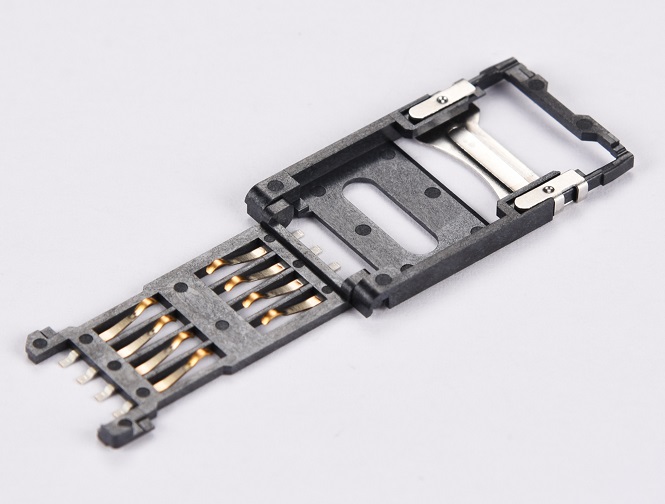

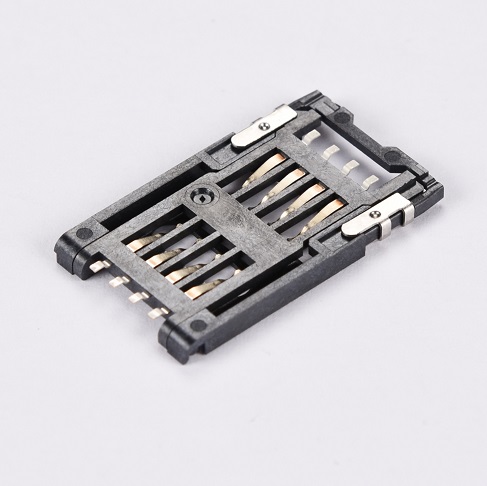

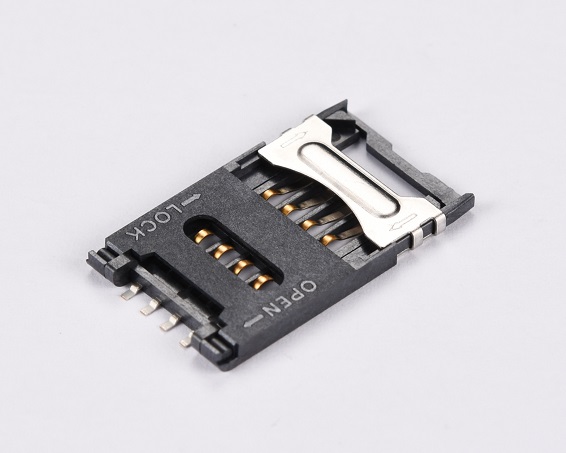

6P & 8P SIM Card Connector Hinged type,H2.5mm

Order Information:
KLS1-SIM-012-6P-R
Pins:6pin,8pin

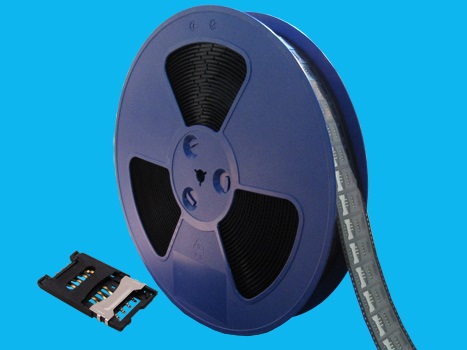

R=Roll pack T=Tube pack

Material:
Housing:LCP UL94V-0
Contact Terminal:Phosphor Bronze
Metallic Shell:Stainless Steel-SUS304

Plating:
Contact Terminal Plating
Contact Area:5μ” Gold
Soldering Area:100μ” Tin
Under-plating:50μ” Nickel above

Electrical:
Voltage Rating:50 V max
Current Rating:1A max
Operating Temperature: -45ºC~+105ºC
Contact Resistance:50 mΩ typical,100mΩ max
Insulating Resistance:1000 mΩ min.(Apply 500V DC)
Dielectric Withstanding Voltage:500 VAC for 1 minute

Mechanical:
Durability:min 5,000 cycles
