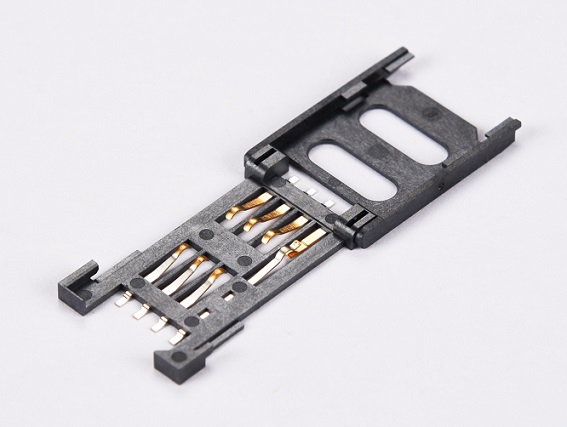

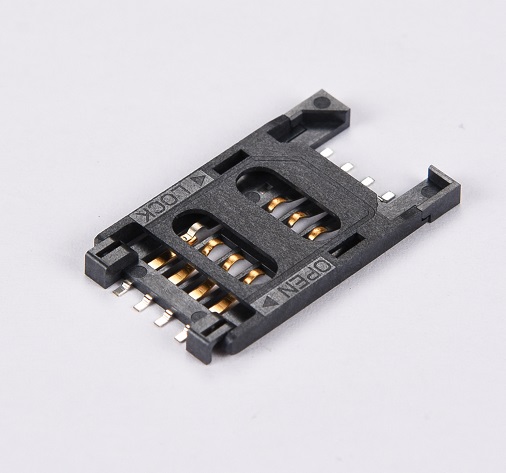

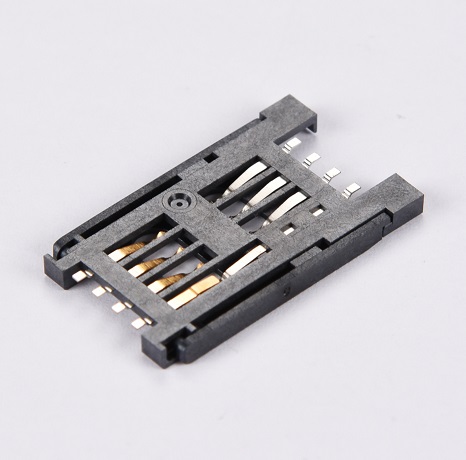

6P＋2P With Switch SIM Card Connector,Hinged type,H2.5mm

Order Information:
KLS1-SIM-010B-H2.5-8P-1-R
Pins:6+2pin with switch
1=Without peg

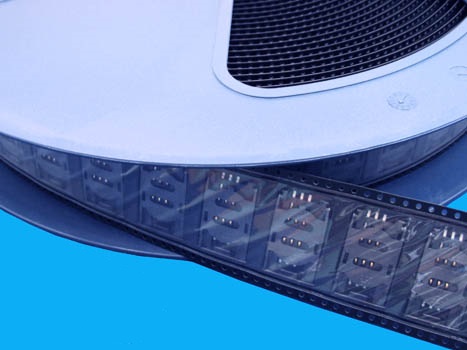

R=Roll pack  T=Tube pack

Material:
Insulator body:LCP. Color:Black
Contact:Phosphor Bronze
Plating:
Finsh:Tin Gold or Duplex plated.
Standard:Gold flash 3u” all over Nickel
Electrical:
Current Rating:0.5A.
Dielectric Withstanding Voltage:500V AC
Insulation Resistance:1000MΩ Min
Contact Resistance:30mΩ Max.
Life: 10000 Cycles
Operating Temperature: -45ºC~+105ºC

KLS1-SIM-010B.pdf
