6.70mm pitch Wire To Board Connectors

  • Model: KLS1-6.70
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

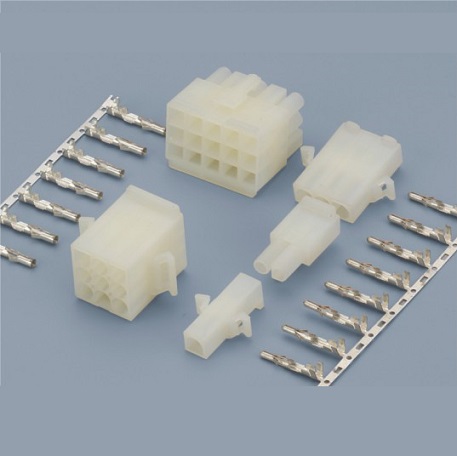

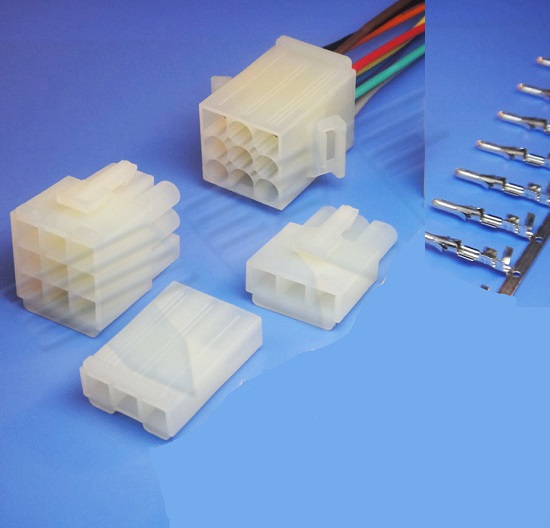

6.70mm pitch Wire To Board Connectors

Order information:
KLS1-6.70-1X02-R
Pitch:6.70mm
1-Single layer  2-Double layer   3-Three layer
02-No.of 02~15 pins
R-Male Housing  P PF-Female Housing  FT-Female Terminal   MT-Male Terminal  S-Straight male pin

Specifications
◆Material: PA66,UL94V-2
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:12.0A AC,DC
◆Voltage rating:600V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulation resistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range  : AWG#18~#22
