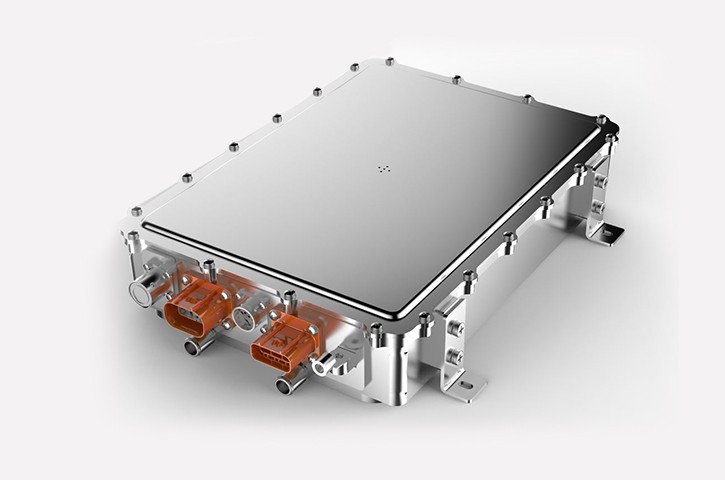

6.6KW OBC+2KW DC-DC (liquid cooled) Model: KLS1-CDD03 MOQ: 1000 PCS Payment: L/C, D/A, D/P, T/T Place_of_Origin China Delivery_Time: 10 days Inquiry Product Details Features of stable technical performance, high efficiency, small size, high protection level and high seismic level. Adopt liquid cooling method, heat dissipation speed is fast, dustproof, noise is small. The integrated control structure design greatly improves the protection level and heat dissipation efficiency. Application: New energy vehicle Industrial control products Energy storage power station IDC Data Center Product size: 454*291*83mm (without plug-ins) Product weight: 8.0KG OBC: Input voltage: 85-264VAC Rated output voltage: 108 VDC / 144 VDC / 336 VDC / 384 VDC (customizable) Output power: 6.6KW Low voltage auxiliary output voltage: 13.8VDC Low voltage auxiliary output current: 7.3A Efficiency: 95% Protection level: IP67 Communication port: CAN2.0 DC- DC： Rated input voltage: 108 vac / 144 vac / 336 vac / 384 vac (customizable) Rated output voltage: 14Vdc Maximum output current: 143A Rated output power: 2KW Maximum output power: 2.4KW Efficiency: 95% Protection level: IP67 Communication port: CAN2.0 Share: Related Products
