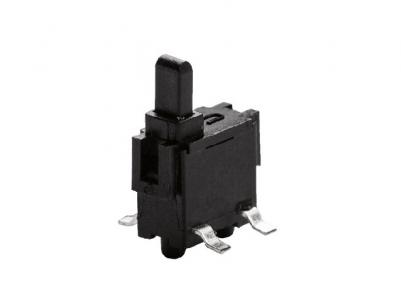

6.4×3.0x5.0mm Detector Switch,H8.5mm SPST-NO SMD with sing post

Name: Ningbo KLS Electronic Co.Ltd
Address: NO. 8-1, Rongxia RD. Xiapu Shanqian Industrial Zone, Beilun, Ningbo, Zhejiang, China 315800
Tel: +86 57486828566
Fax: +86 57486824882
General Manager: +86 15888521511
Vice General Manager: +86 13777953832
Sales Manager: +86 15088487690
E-mail: <a href="/cdn-cgi/l/email-protection#9ceffdf0f9efdcf7f0effff3f2f2f9ffe8f3eeb2fff3f1"><span class="__cf_email__" data-cfemail="c9baa8a5acba89a2a5baaaa6a7a7acaabda6bbe7aaa6a4">[email&#160;protected]

Model: KLS7-ID-1120S
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details

Detector Switch
SPECIFICATION:
Rating: 0.1A 30V DC
Operating Force: 36gf
Insulation Resistance: 100 MΩ Min @ 100V DC
Contact Resistance: 1Ω Max.
Operating Temperature: -25oC ~ +70oC
Mechanical Life: 50,000 cycles
Electrical Life: 50,000 cycles
