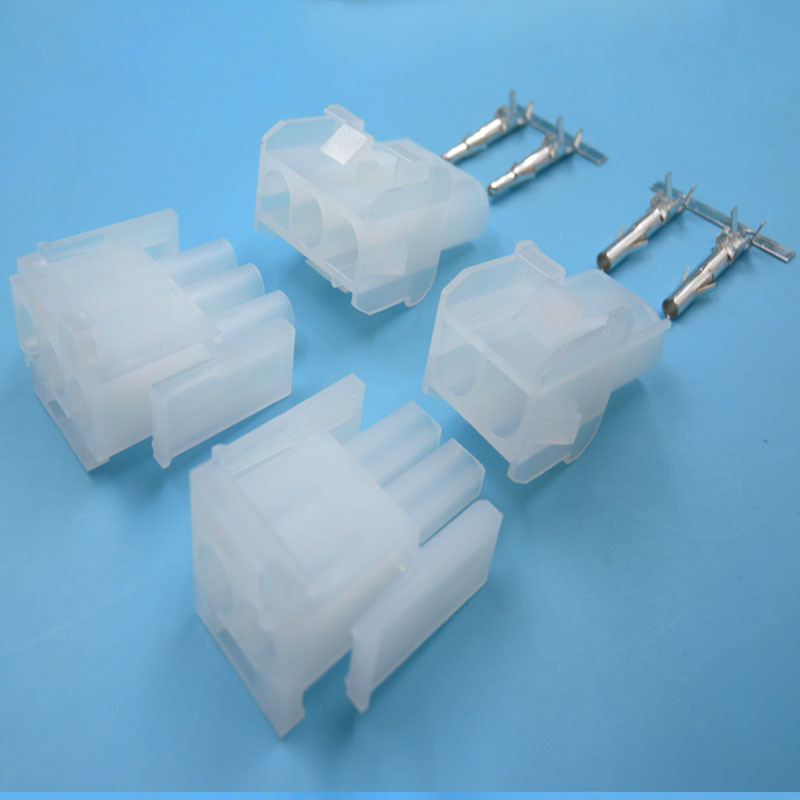

6.35mm Pitch Molex 42021 42022 43255 Wire To Board Connector
- Product Details
6.35mm Pitch Molex 42021 42022 43255 Wire To Board Connector
Order information:
KLS1-XL1-6.35-1X02-FH
Pitch:6.35mm
1-Single layer 2-Double layer 3-Three layer
02-No.of 02~15 pins
FH-Female Housing MH-Male Housing FT-Female Terminal MT-Male Terminal S-Straight male pin R-Right angle male pin
Specifications
◆Material: PA66,UL94V-2,UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:13.0A AC,DC
◆Voltage rating:600V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulation resistance:1000MΩ Min.
◆Withstanding voltage:5000V AC minute
◆Contact resistance:30mΩ Max.
◆Wire range : AWG#18~#22
