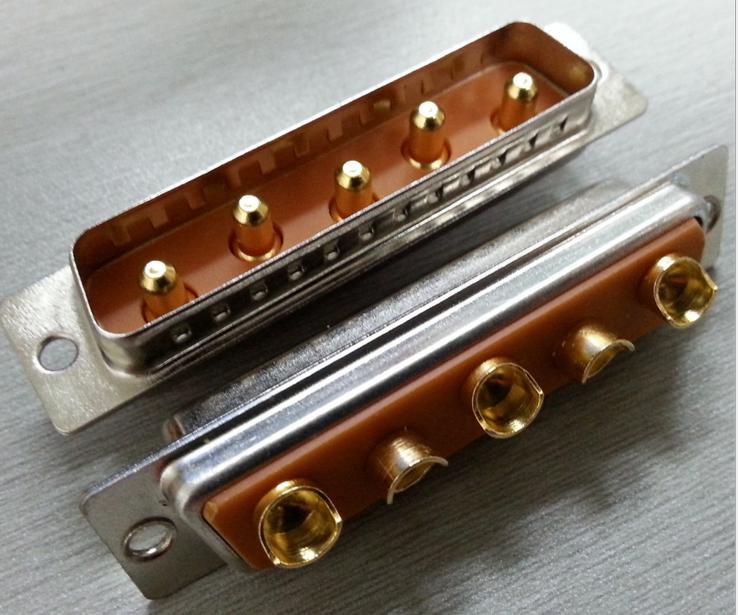

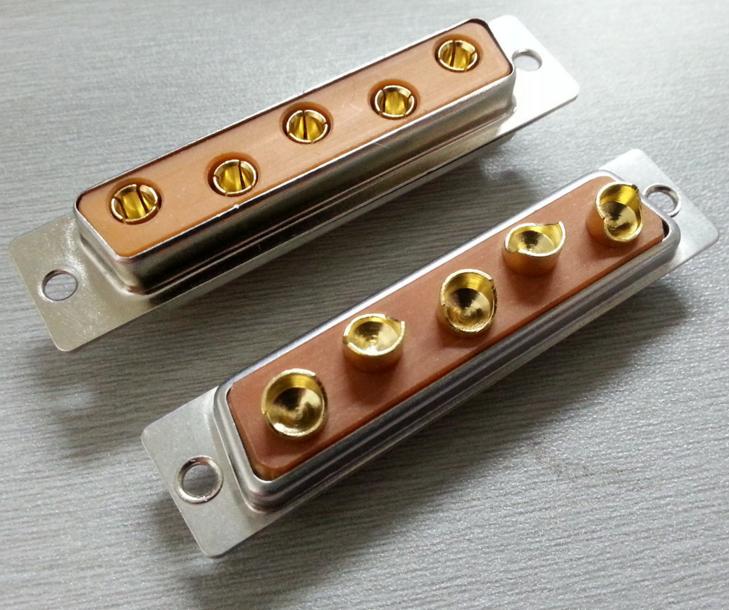

5W5 High current 100A D-SUB Solder Female & Male

Order Information
KLS1-BIG04A-5W5-M-100A-1U
BIG04A-Solder type
5W5-No.of pin
M-Male    F-Female
100A-Current Rating 100A
1U-Contact plating Gold 1u” & 3U-3u”

Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Copper alloy
Contact plating: Gold 1u” or 3u”
Shell: Steel, 100u” Tin Over 50u” min Nickel
Clinch Nut: Brass, 100u” min Nickel Plated

Electrical Characteristics:
Voltage Rating: 300V
Current Rating: 10A 20A 30A 40A
Insulator Resistance: 2000M ohms min
Contact Resistance: 10m ohms max
Durability: 500 cycles
Operating Temperature: -55ºC~+105ºC
