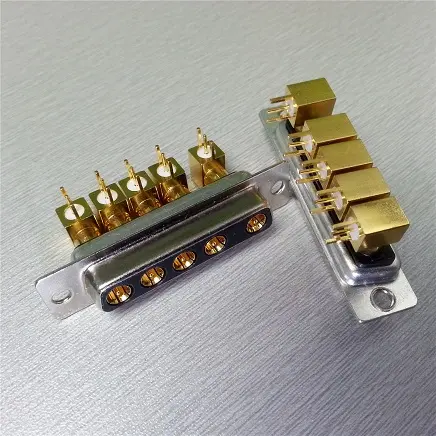

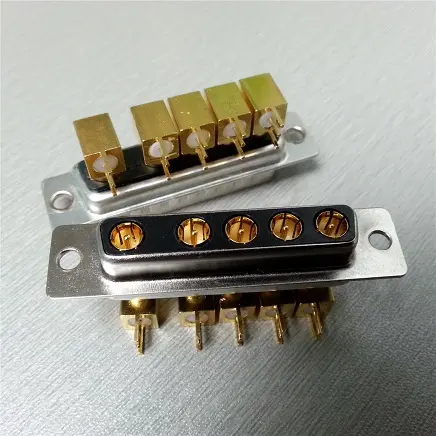

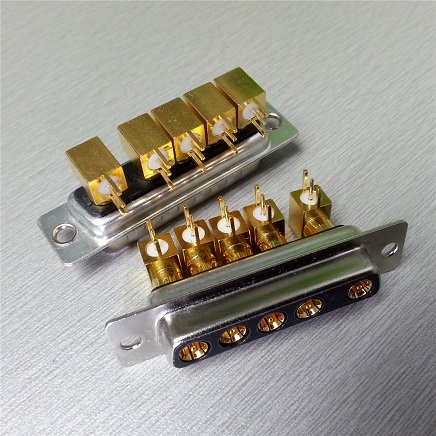

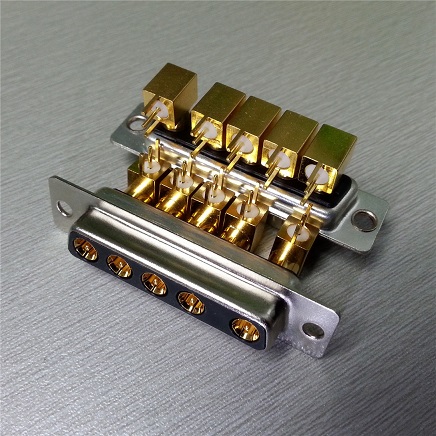

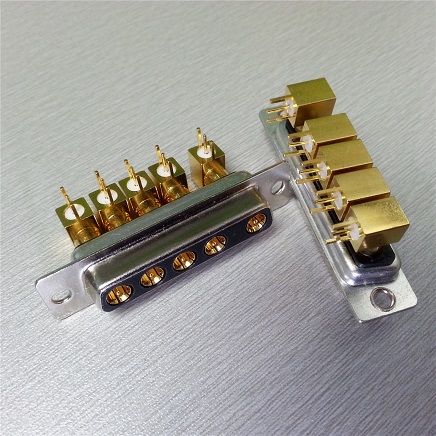

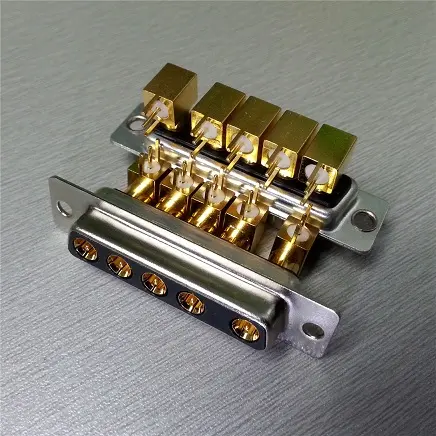

5W5 D-SUB Coaxial Connectors (RF) Female & Male

Order Information
KLS1-DBRF3A-5W5-M-G1U-B-50
5W5-No.of pin
D-SUB Shell: F-Female M-Male
Plating:1u”Gold ~15u” Gold, G1U=Gold 1u” G3U=Gold 3u” G15U=Gold 15u”
Colour: B-Black W-White G-Green
Impedance: 50-50Ω 75-75Ω

Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Copper alloy
Contact plating: Gold 1u” ~15u”
Shell: Steel, 100u” Tin Over 50u” min Nickel
Clinch Nut: Brass, 100u” min Nickel Plated

Electrical Characteristics:
Impedance: 50Ω or 75Ω
Frequency Range:18GHz Max
Working Voltage: 335V volts rms
Withstand voltage：1000Vr.m.s,1mA,60s
Dielectric Withstanding Voltage : 500 volts rms.
VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical 1.25 +0 .025 f (GHz) for Right angle connector typical
Contact Resistance Center contact: 2.0 mΩ
Insulation Resistance: 5,000 MΩ

Mechanical Specifications:
Mating: 1/4″-36 UNS thread coupling
Cable retention: 6kgf typical
Durability: 500Cycles Min.
Coupling nut retention: 18kgf Min.
Operating Temperature: -55ºC~+105ºC
