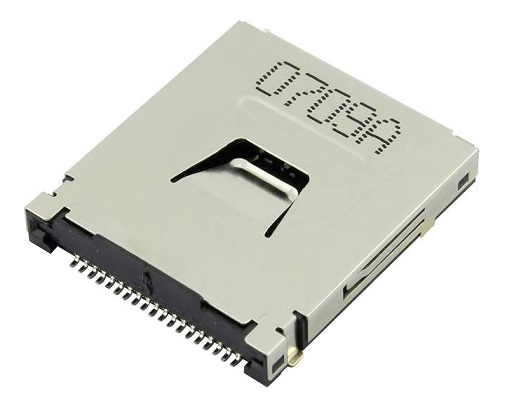

5 in 1 Card Connector,H4.3mm

Material
Insulator:Hi-Temperature Plastic,UL94V-0,Color:Black
Terminal:Copper Alloy,Selective Gold Flash Plating On Contact Area,AND 50U” Min Nickel Underplated On Allover
Shell:Stainless Stell,50u” Nickel Underplated On Allover,Gold Flash On Solder PAD

Electrical
Insulation resistance:1000Μ min.AT DC 500V DC
Withstand voltage:250V ACrms FOR 1 Minute
Contact resistance:100mΩ max.AT 10mA/20mV max
Current Rating: 0.5A
Voltage Rating:5.0 vrms
Mating Cycles:10000 Insertions
Operating Temperature: -45ºC~+105ºC

KLS1-MUT51-001.pdf
