Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

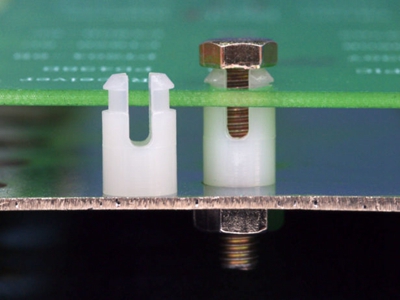

Application: the fixed PC board on the boards, free tools

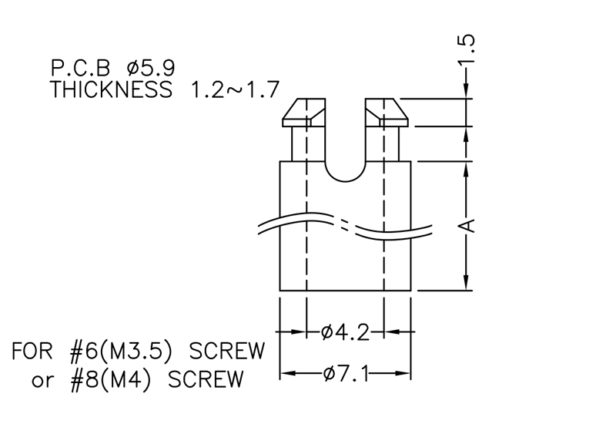

P/N | A | UPPER | Color | Packing | |||
PCB Hole | PCB THICKNESS | ||||||
mm | mm | mm | pcs | ||||
L-KLS8-0236B-PSX-03 | 3.0 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-04 | 4.0 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-4.6 | 4.6 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-05 | 5.0 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-06 | 6.4 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-08 | 7.9 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-09 | 9.5 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-11 | 11.1 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-13 | 12.7 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-16 | 15.9 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-17 | 17.0 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-19 | 19.1 | 5.9 | 1.2~1.7 | Natural | 1000 | ||
L-KLS8-0236B-PSX-22 | 22.2 | 5.9 | 1.2~1.7 | Natural | 500 | ||
L-KLS8-0236B-PSX-25 | 25.4 | 5.9 | 1.2~1.7 | Natural | 500 | ||
L-KLS8-0236B-PSX-30 | 30.0 | 5.9 | 1.2~1.7 | Natural | 500 |
