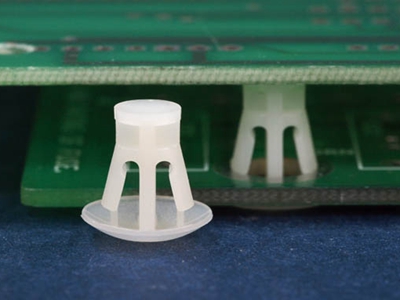

5.5mm Spacer Support

  • Model: KLS8-0210
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

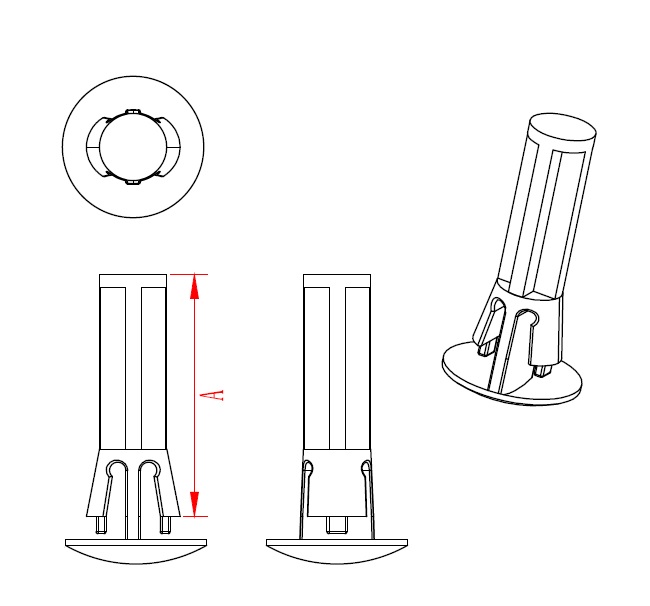

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0210-RLS-4 3.5 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-5 5.0 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-6 6.3 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-7 7.0 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-8 8.0 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-10 10.0 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-12 12.0 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-13 12.7 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-14 14.0 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-16 15.9 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-18 18.0 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-19 19.0 　 　 5.5 0.8~1.6 Natural 1000
L-KLS8-0210-RLS-20 20.0 　 　 5.5 0.8~1.6 Natural 1000
