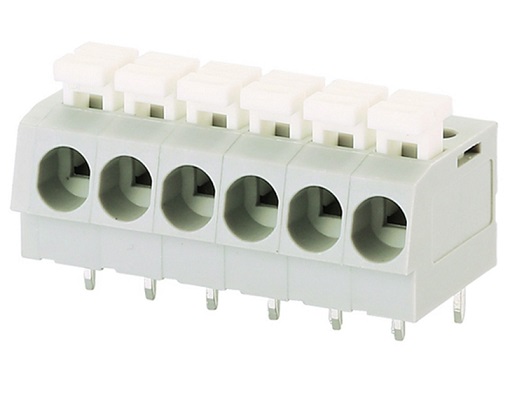

5.0mm Spring PCB Terminal Block

Material:
Housing:                      PA66, UL94V-0
Pin header:                 Copper alloy ,Sn plated
Shrapnel:                    Stainless Steel
Wire Range:                20~12 AWG  2.5mm²
Stripping Length:        10~11  mm
Poles:                        01-XXP
Pitch:                         5.0mm

Electrical:
Rated voltage:             300V
Rated current:             12A
Contact Resistance:     20mΩ
Insulation resistance:  500MΩ/DC500V
Withstand voltage:      AC2000V / 1 min
Temp. Range:   -40 ° C ~ + 105 ° C

KLS2-237-5.00.pdf
