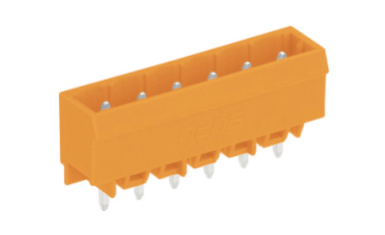

5.08mm Solder pin
- Product Details
Number of plies Single deck
Port number 2～24
Pitch 5.0mm
Color Orange
Connection technology Spring cage clamp connection technology
Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc
Insulation material PA66
Flammability rating conform to UL94 V0
Rated voltage V 250V
Rated current A 12A
UL Rated voltage V 300V
UL Rated current A 10A
