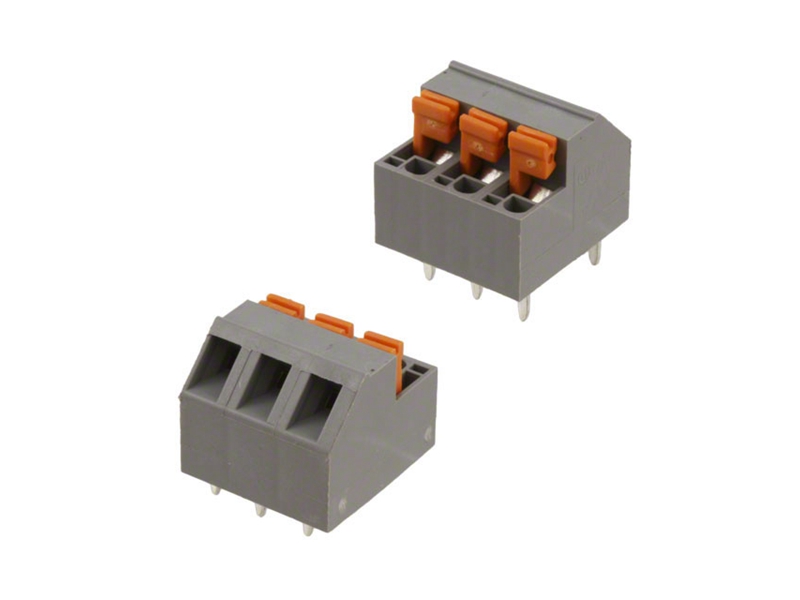

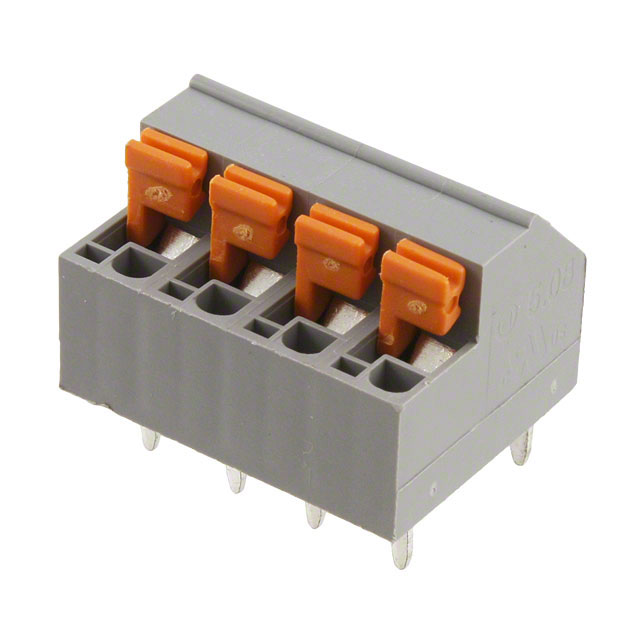

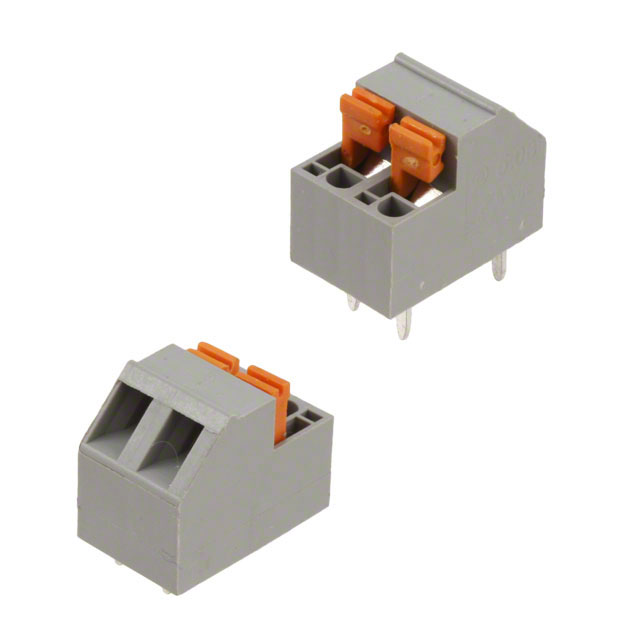

Screwless Terminal block 5.08mm pitch

Electrical:
Rated voltage: 250V
Rated current: 12A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 22-14AWG

Material:
Housing: PA66, UL94V-0
Pin header: Copper, Tin plated

Mechanical:
Temp. Range: -40ºC~+105ºC
Breakdown voltage:2500V
Safety approval:UL CE
