5.08mm Pitch Pin Header Connector

  • Model: KLS1-207M
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

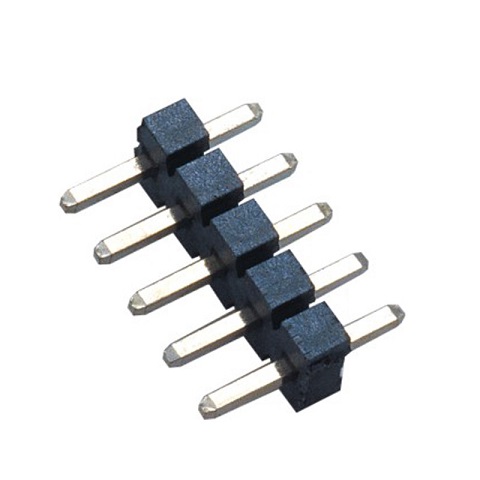

5.08mm Pitch Pin Header Connector

Order Information
KLS1-207M-2.50-1-XX-S-L1*L2*L3-SN
207M-5.08mm pitch pin haeder
Plastics height:2.50mm or 3.00mm
1-Single layer
XX-Total pin number  (No.of 1~20pin)

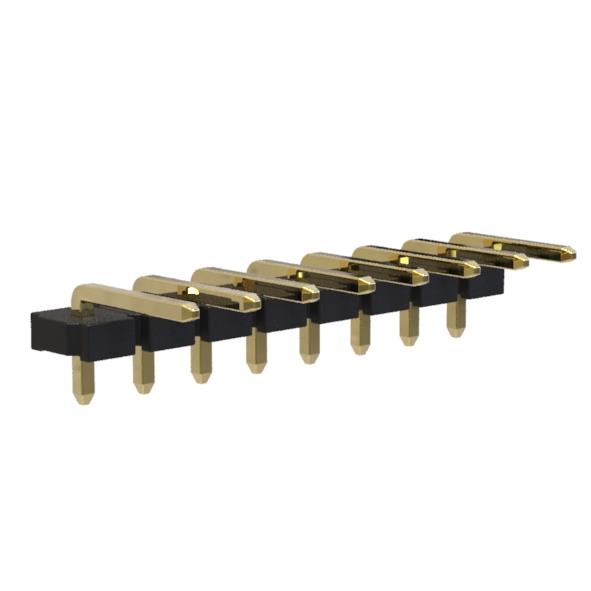

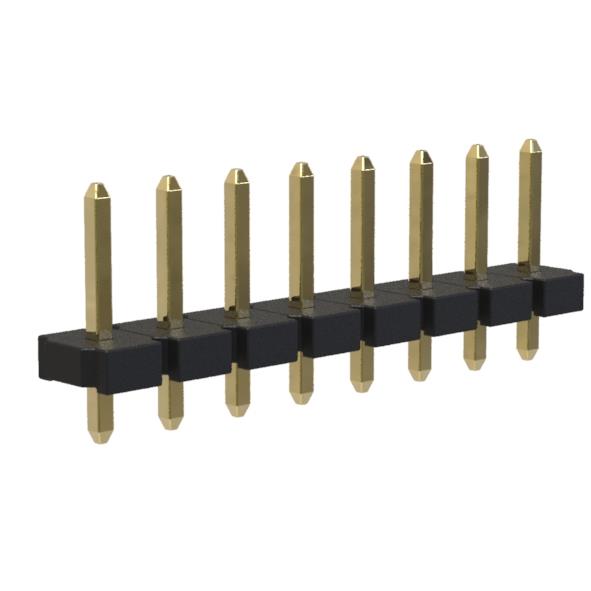

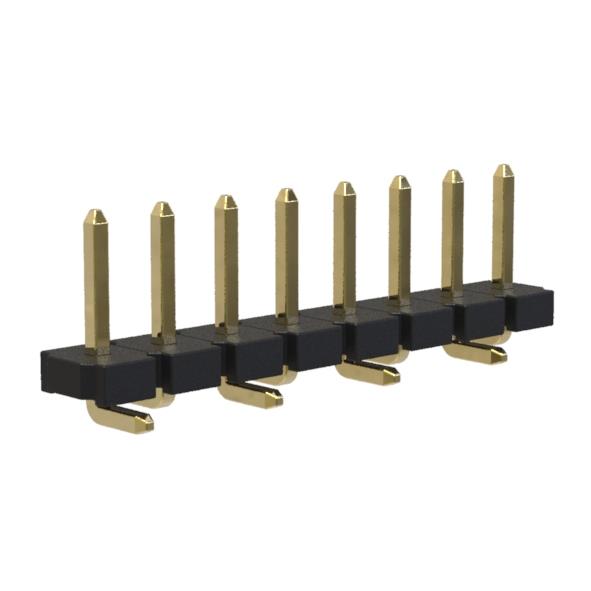

S-Straight Pin  R-Right Angle Pin  T-SMT Pin
SIZE:L1*L2*L3
Plating_G0=Gold Flash  G1=1u” Gold   G10=10u” Gold   G15=15u” Gold   G30=30u” Gold    SN=Tin

Material:
Standard:LCP
Contact: Brass
Insulator:Polyester,UL94V-0

Electrical Characteristics:
Rated Current:            7AMP
Contact Resistance:    20mΩ Max
Withstand Voltage:     1000V  AC/DC
Insulator Resistance: 1000MΩ Min

Mechanical
Operating Temperature: -40°C~+105°C
Max.Processing Temp:230°C for 30-60
            seconds (260°C for 5 seconds)
