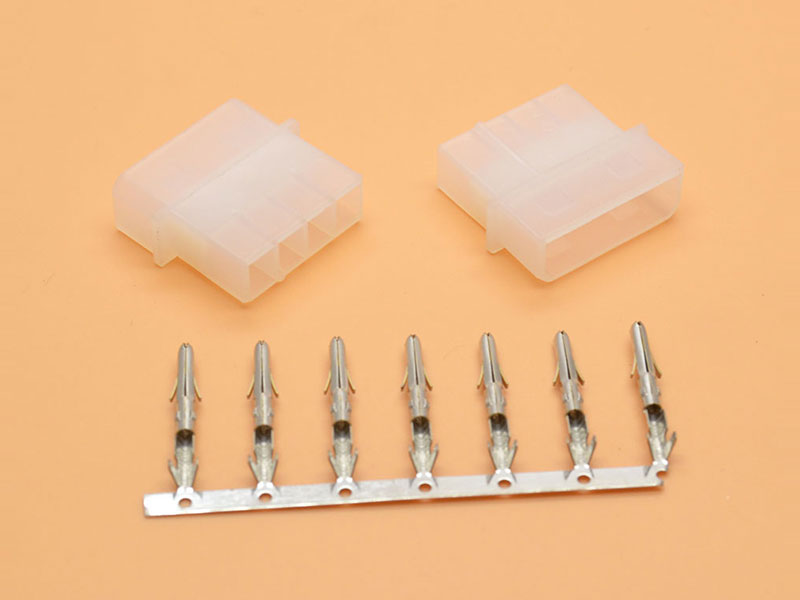

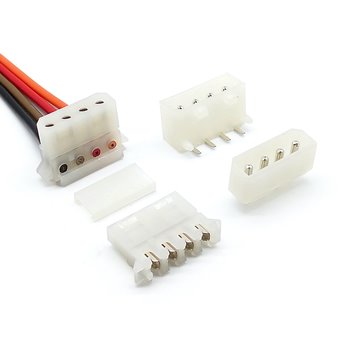

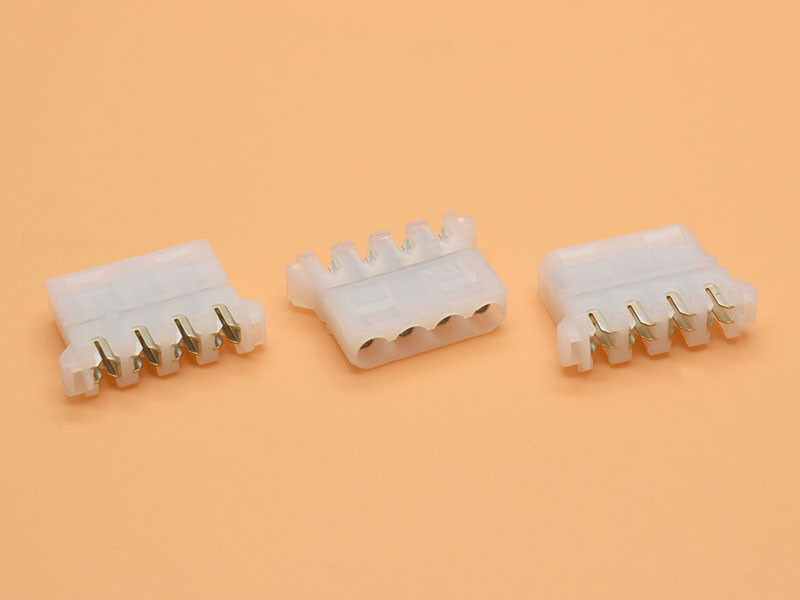

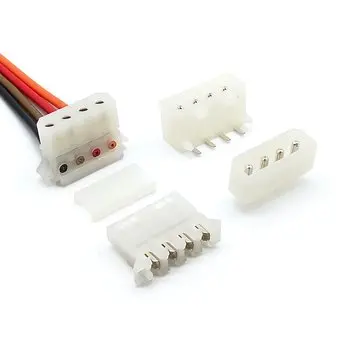

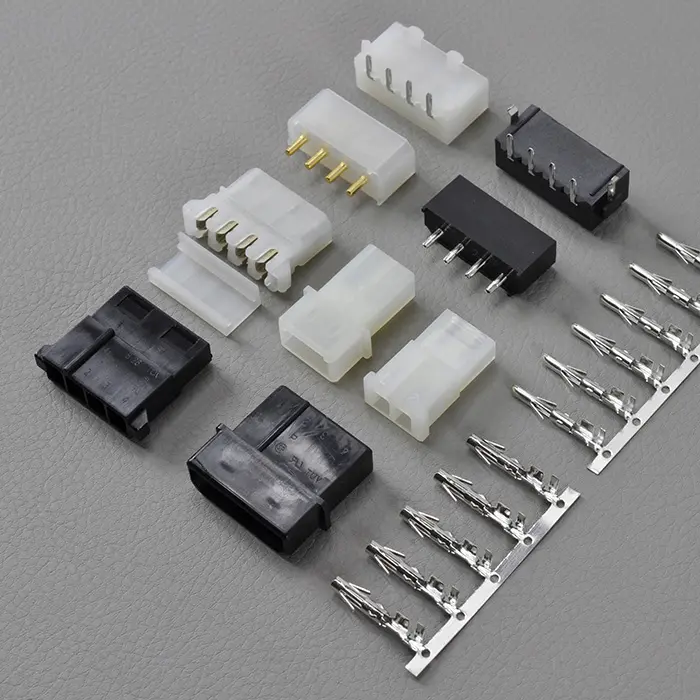

5.08mm Molex 8981 Type Wire To Board Connector
- Product Details
5.08mm Molex 8981 Type Wire To Board Connector
Order information:
KLS1-XL1-5.08-04-FH
Pitch:5.08mm
04-No.of 04 pins
FH-Female Housing MH-Male Housing FT-Female Terminal MT-Male Terminal S-Straight male pin R R1-Right angle male pin
Specifications
◆Material: PA66 UL 94V-2
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:10.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#18~#24
