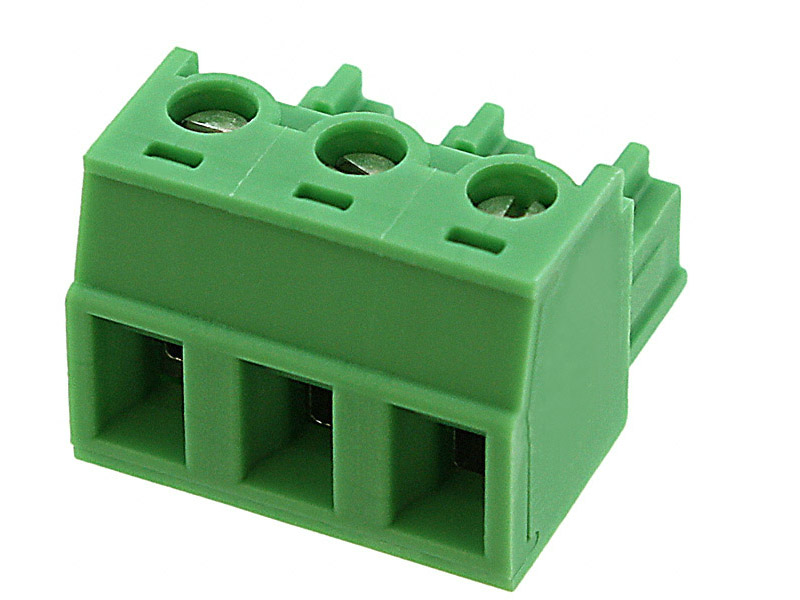

5.08mm Male Pluggable terminal block
- Product Details
Electrical:
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/1Min
Wire range: 28-16AWG 1.5mm²
Material:
Contact: Brass,Sn Plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Mechanical:
Torque: 0.2Nm (2lb.in)
Strip length: 6-7mm
