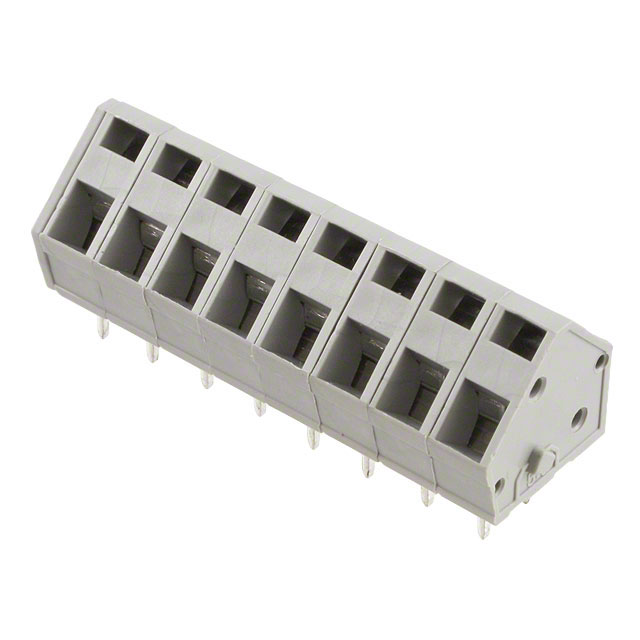

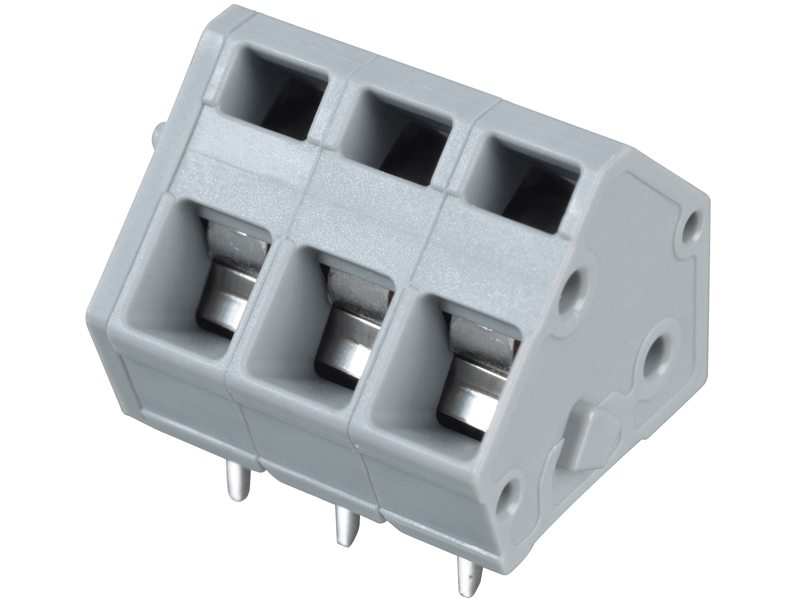

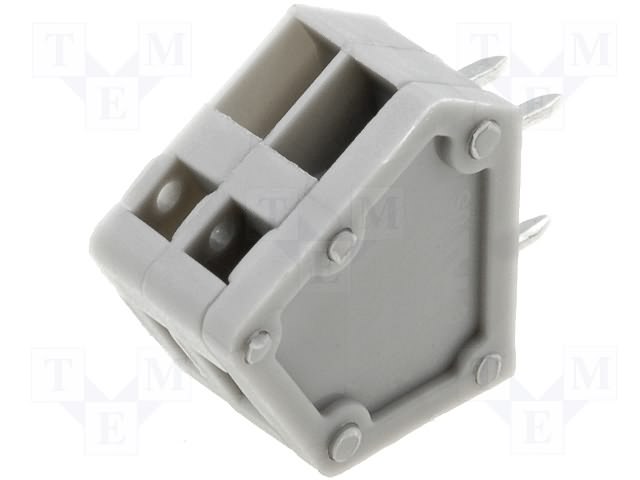

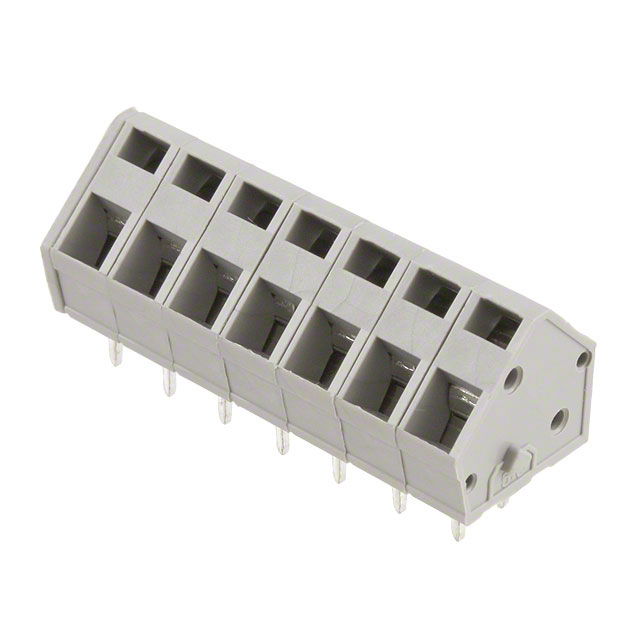

5.00mm Spring Terminal Block
- Product Details
Electrical:
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/1Min
Wire range: 26-14AWG 1.5MM²
Material:
Housing:PA66，UL94V-0
Wire guard: Stainless steel
Pin header: Brass, Tin plated
Mechanical:
Temp. Range: -40ºC~+105ºC
Strip length:5-6mm
