Number of plies Single deck
Port number 2～24

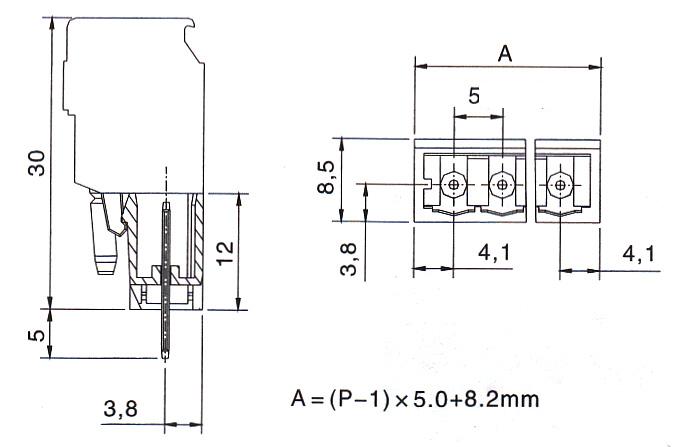

Pitch 5.0mm
Color Gray
Connection technology Spring cage clamp connection technology
Product conform standard IEC61984、UL1059、CSA-C22.2 No. 158 etc
Insulation material PA66
Flammability rating conform to UL94 V0
Rated voltage V 250V
Rated current A 12A
UL Rated voltage V 300V
UL Rated current A 15A

20161116155142KLS2-MPVA-5.00.pdf
