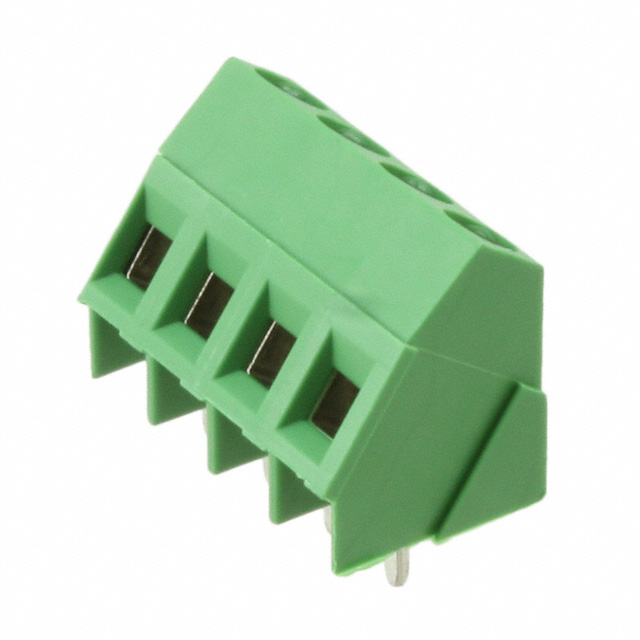

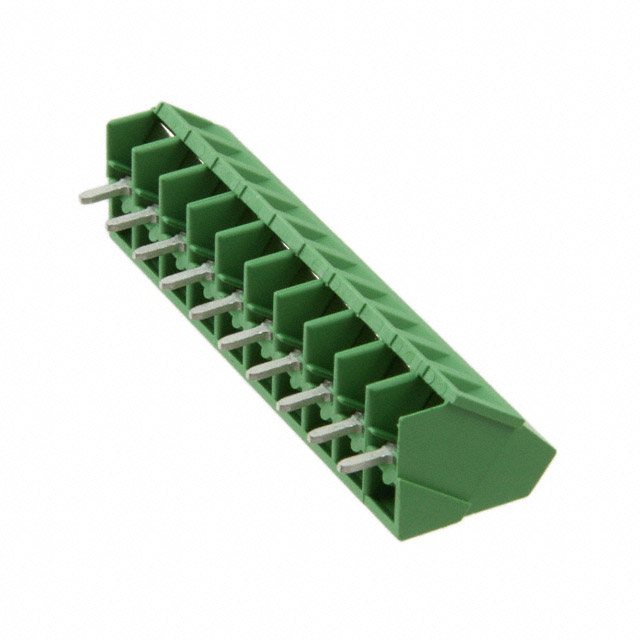

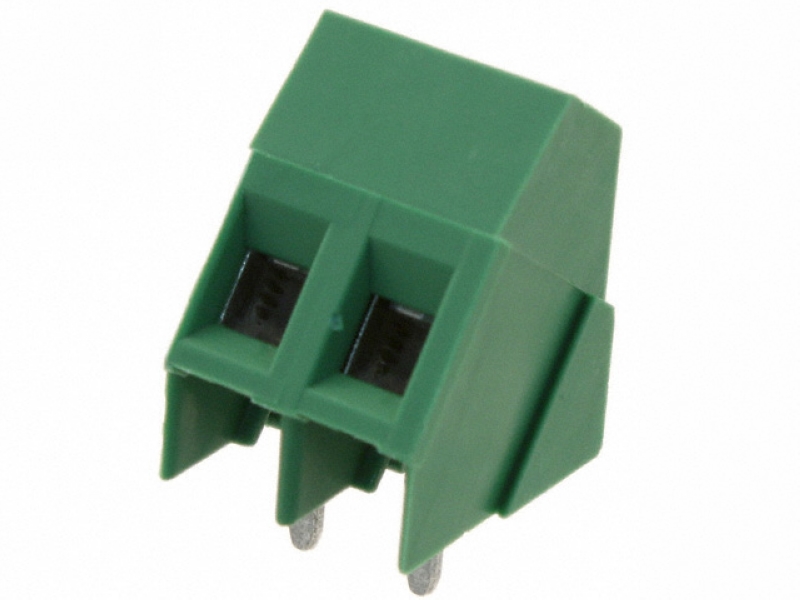

5.00mm screw terminal block rising clamp

  • Model: KLS2-103-5.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order information:
KLS2-103-5.00-XXP-4S
Pitch:5.00mm

XXP:02~12 pins
Color:1-Gray   2-Blue  3-Black  4-Green
Screw:S-Slot screw   C-Crass screw  SC-Composit slot screws(+ -)

Electrical :
Rated voltage:300V
Rated current:15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:28-14AWG1.5mm²

Material:
 Screws: M2.5 steel Zinc plated

Pin header: Brass, Sn plated
Housing: PA66, UL94V-0

Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
 Torque: 0.4Nm (10.6lb.in)
Strip length: 4.5~5mm
