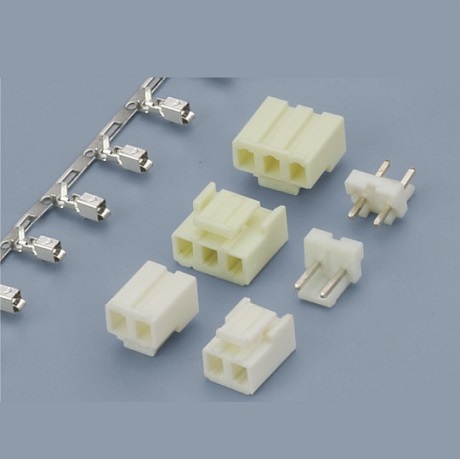

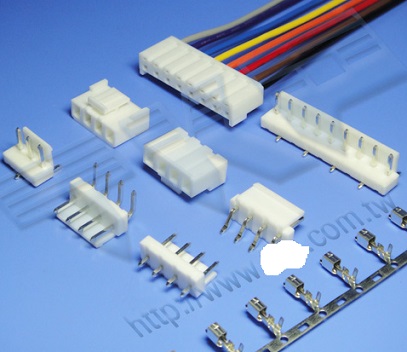

5.00mm Pitch JST NV Type Wire To Board Connector
- Product Details
5.00mm Pitch JST NV Type Wire To Board Connector
Order information:
KLS1-XL1-5.00-XX-H
Pitch:5.00mm
XX-No.of 02~16 pins
H-Housing T-Terminal S SW-Straight male pin R-Right angle male pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:7.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#20~#28
