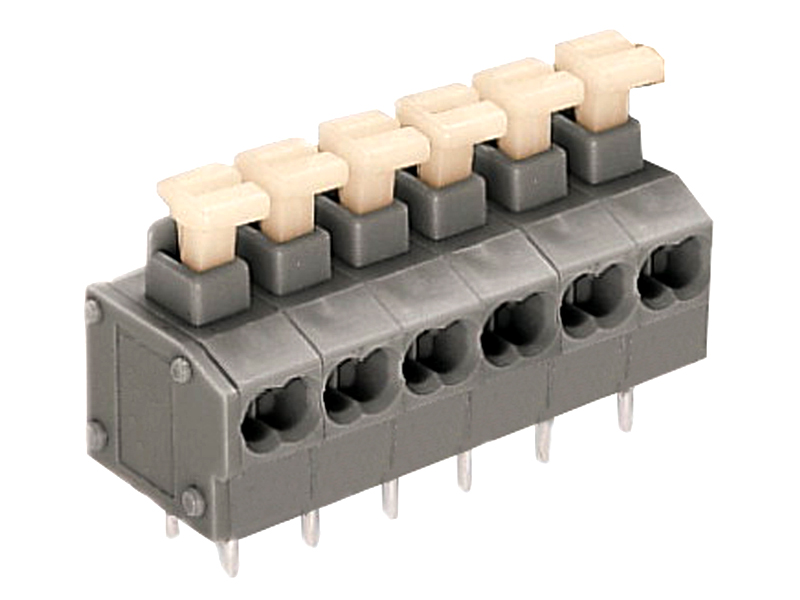

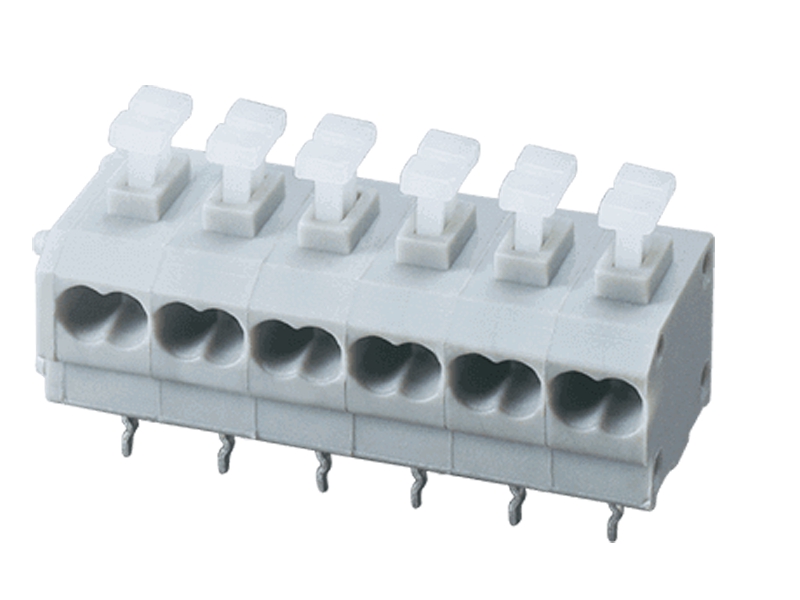

5.00mm PCB Spring Terminal Block

  • Model: KLS2-235T-5.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Housing:      PA66 , UL94V-0
Pin header:  Brass, Tin plated
Wire guard: Stainless steel

Electrical:
Rated voltage:    300V
Rated current:    5A
Wire range:      22~18AWG  1.0mm²
Contact Resistance: 20 m Ω
Insulation resistance:  500MΩ/DC500V
Withstand voltage:      AC2000V / 1 min

Mechanical:
Temp. Range:   -40 ° C ~ + 105 ° C
Soldering:       250° C±5° C   for   5S
Strip length:     9~10mm
