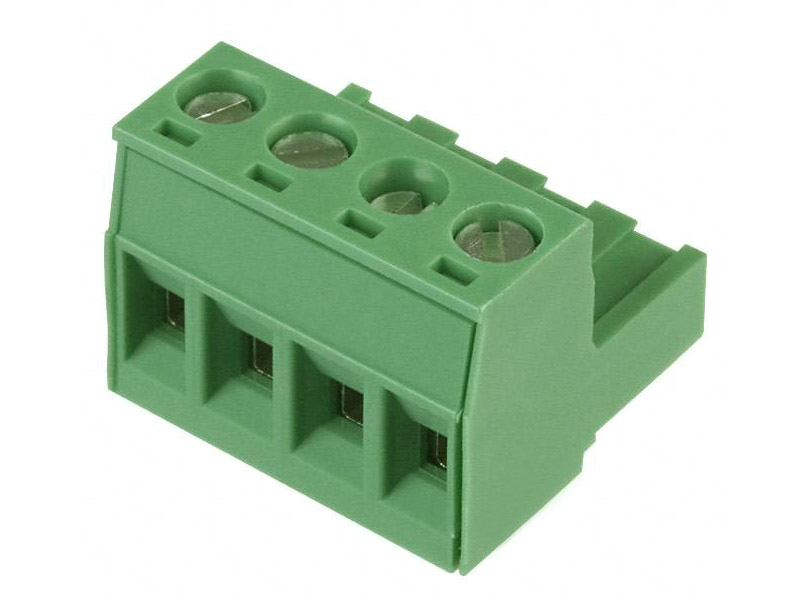

5.00mm &5.08mm Male Pluggable terminal block
- Product Details
Electrical:
CRated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range: 28-14AWG 2.5mm²
Material:
Contact: Brass,Sn Plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.5Nm (3lb.in)
Strip length: 7-8mm
