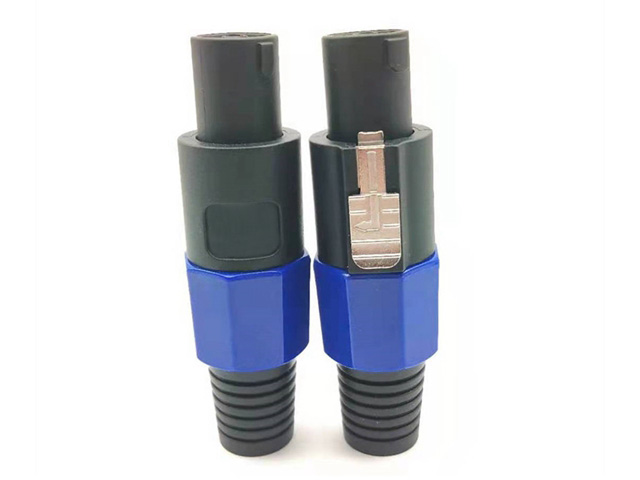

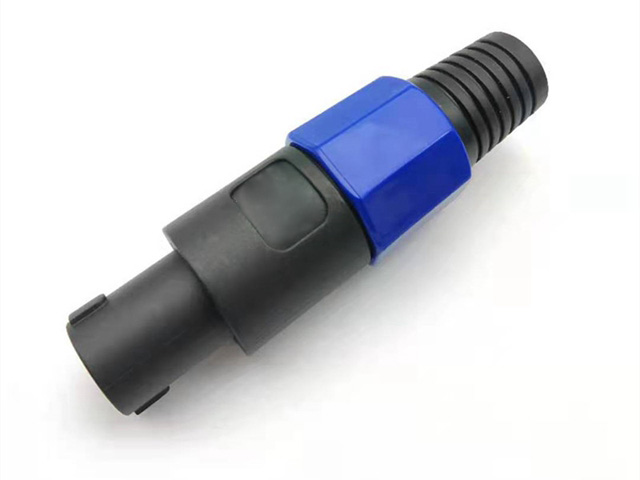

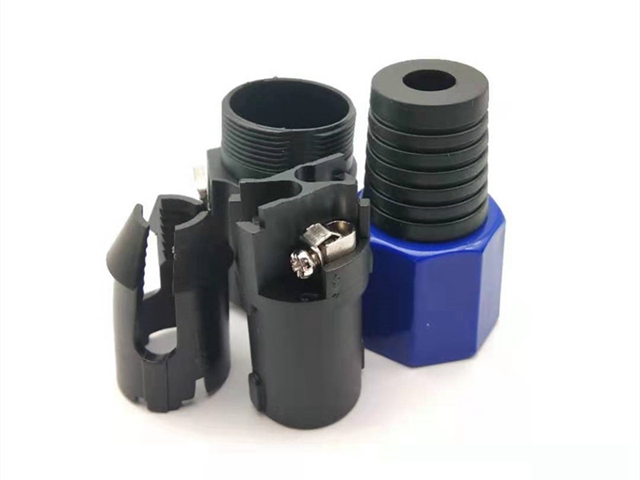

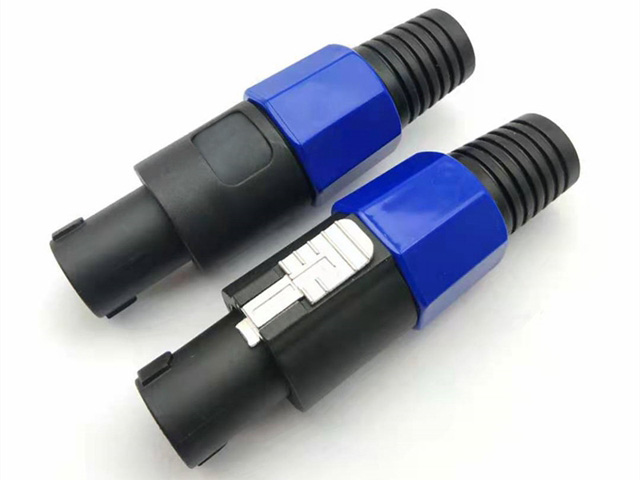

4 pole speakON connectors Plug

  • Model: KLS1-SLP-0601
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

4 pole speakON connectors Plug

ELECTRICAL
1.Voltage Rating: 250VAC
2.Current Rating: 15A Max.
3.Contact Resistance: 30mΩ Max.
4.Insulation Resistance: 1000MΩ Min.
5.Withstanding Resistance :1000VAC Min.

MECHANICAL
1.Durability: 1000 cycles Min.
2.Insertion Force: 5~20N
3./withdrawal Force: 5~20N.
