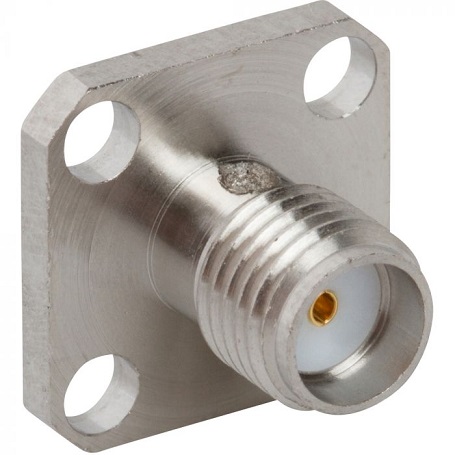

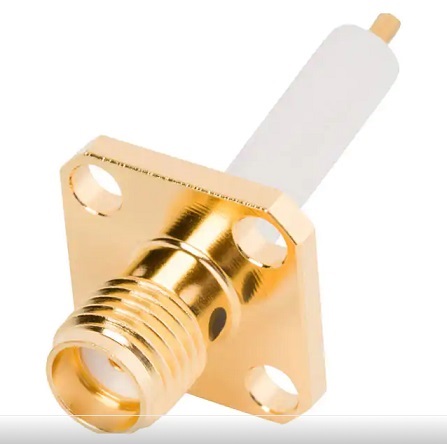

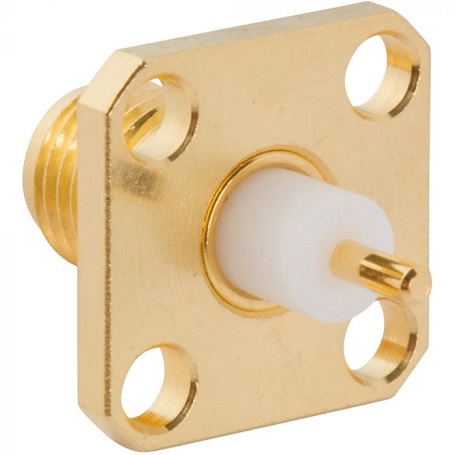

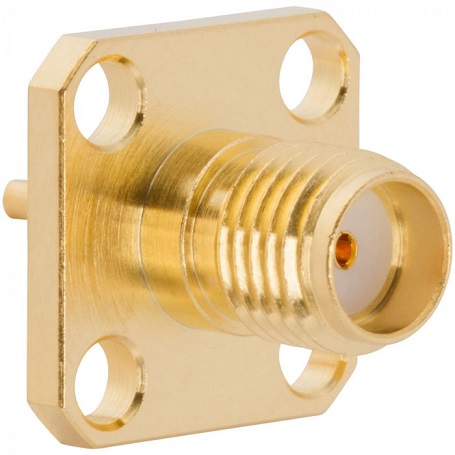

4-Hole Flange Panel Mount SMA Connector Straight Jack, Female L13.8mm L15.5mm L17mm L27.4mm

Material:
Connector body:Brass per QQ-B-626 ,gold Plating or nickel
Center contact Male:Brass,gold Plating
Center contact Female:Beryllium copper,gold Plating
Electrical Specifications:
Impedance:50 Ω
Frequency Range:DC～12.4GHz
Voltage Rating:335 volts rms.
Dielectric Withstanding Voltage:1000V rms
VSWR :≤1.10+0.002f for Straight connector typical;
≤1.20+0.003f for Right angle connector typical
Contact Resistance Center contact: ≤3 mΩ;Body:≤2 mΩ
Insulation Resistance:≥5000 MΩ
Temperature Range: – 65°C to +165°C

KLS1-SMA098.pdf
