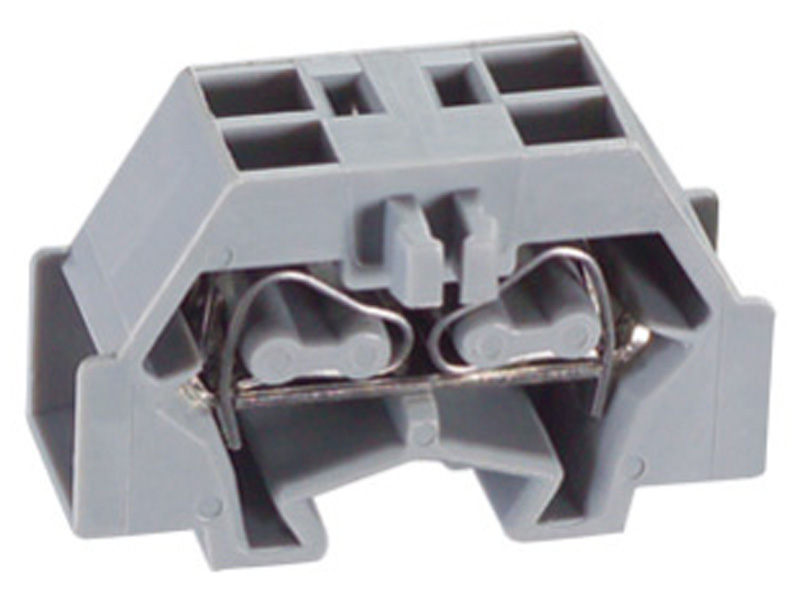

4 Conductors With Fixing Flanges
- Product Details
| ITEM | IEC | UL | Strip length | Size | ||||||||
| Gray | Blue | Green | Orang | Yellow | Wire range | Rated voltage | Rated current | Wire range | Rated voltage | Rated current | TxWxH | |
| mm² | V | A | AWG | V | A | mm | mm | |||||
| DF104151 | DF104152 | DF104154 | DF104155 | DF104158 | 0.2~1.5 | 400 | 18 | 24~16 | 300 | 10 | 8~9 | 8x25x17 |
| DF104251 | DF104252 | DF104254 | DF104255 | DF104258 | 0.2~2.5 | 500 | 24 | 24~14 | 300 | 15 | 8~9 | 10x28x18 |
| DF104401 | DF104402 | DF104404 | DF104405 | DF104408 | 0.2~4.0 | 630 | 24 | 24~12 | 300 | 20 | 9~10 | 12×33.5×23 |
